ABM11W-27.1200MHZ-7-D1X-T3

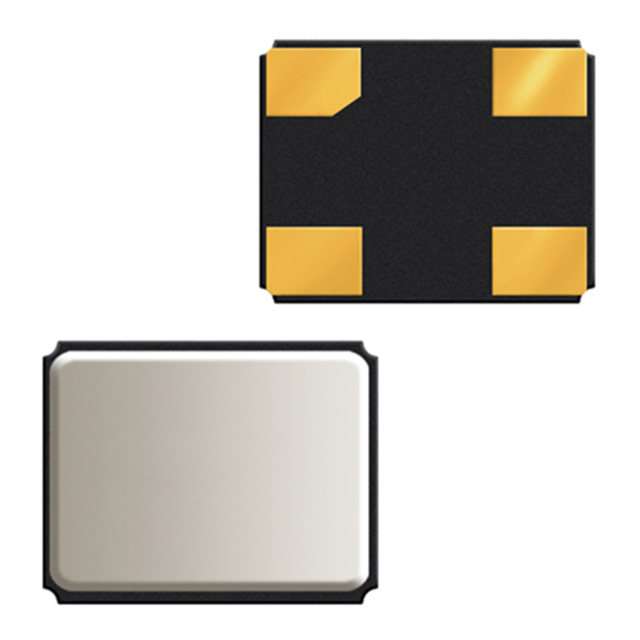

lmages are for reference only.ABM11W-27.1200MHZ-7-D1X-T3
CRYSTAL 27.1200MHZ 7PF SMD
Datasheet4-SMD, No Lead
37,553 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27.12 MHz ±10ppm Crystal 7pF 50 Ohms 4-SMD, No Lead
ABM11W-27.1200MHZ-7-D1X-T3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM11W |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 27.12 MHz |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 7pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | ABM11W-27.1200MHZ-7-B1U-T3 | ABM11W-27.1200MHZ-7-B1U-T3 | ABM11W-27.1200MHZ-7-D1X-T3 | ABM11W-27.1200MHZ-4-B1U-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 27.1200MHZ 7PF SMD | CRYSTAL 27.1200MHZ 7PF SMD | CRYSTAL 27.1200MHZ 7PF SMD | CRYSTAL 27.1200MHZ 4PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
