ABM12W-48.0000MHZ-8-K2Z-T3

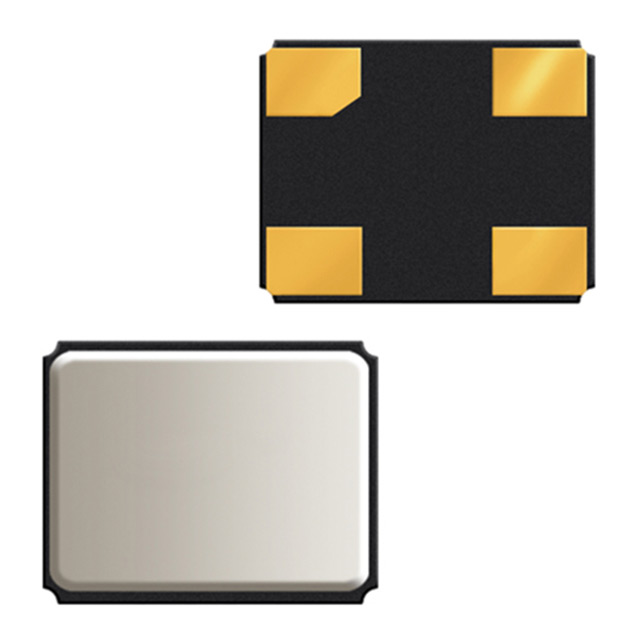

lmages are for reference only.ABM12W-48.0000MHZ-8-K2Z-T3
CRYSTAL 48.0000MHZ 8PF SMD
Datasheet4-SMD, No Lead
95,636 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
48 MHz ±20ppm Crystal 8pF 50 Ohms 4-SMD, No Lead
ABM12W-48.0000MHZ-8-K2Z-T3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM12W |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 48 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 8pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABM12W-48.0000MHZ-8-K2Z-T3 | ABM12W-48.0000MHZ-8-B1U-T3 | ABM12W-48.0000MHZ-8-B1U-T3 | ABM12W-48.0000MHZ-8-D1X-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 48.0000MHZ 8PF SMD | CRYSTAL 48.0000MHZ 8PF SMD | CRYSTAL 48.0000MHZ 8PF SMD | CRYSTAL 48.0000MHZ 8PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
