ABM3AIG-16.000MHZ-8-1R-T

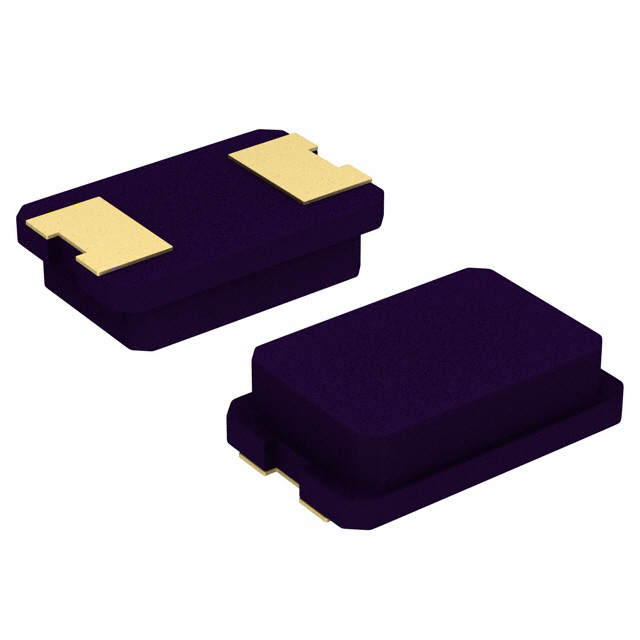

lmages are for reference only.ABM3AIG-16.000MHZ-8-1R-T
CRYSTAL 16.0000MHZ 8PF SMD
Datasheet2-SMD, No Lead
84,022 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16 MHz ±10ppm Crystal 8pF 60 Ohms 2-SMD, No Lead
ABM3AIG-16.000MHZ-8-1R-T
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM3AIG |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 16 MHz |
| Frequency Stability | ±150ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 8pF |
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 150°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.061" (1.55mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | ABM3AIG-16.000MHZ-8-1R-T | ABM3AIG-12.000MHZ-8-1R-T | ABM3AIG-12.000MHZ-8-1R-T | ABM3AIG-12.000MHZ-8-K1Z-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 16.0000MHZ 8PF SMD | CRYSTAL 12.0000MHZ 8PF SMD | CRYSTAL 12.0000MHZ 8PF SMD | CRYSTAL 12.0000MHZ 8PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
