ABM3B-26.000MHZ-10-R30-B1U-T

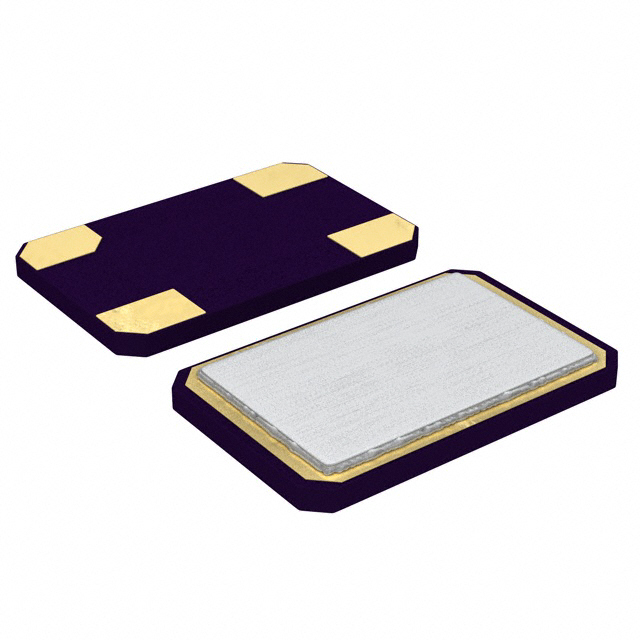

lmages are for reference only.ABM3B-26.000MHZ-10-R30-B1U-T
CRYSTAL 26.0000MHZ 10PF SMD
Datasheet4-SMD, No Lead
68,128 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
26 MHz ±10ppm Crystal 10pF 30 Ohms 4-SMD, No Lead
ABM3B-26.000MHZ-10-R30-B1U-T
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM3B |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 26 MHz |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 10pF |
| ESR (Equivalent Series Resistance) | 30 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C ~ 70°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABM3B-26.000MHZ-10-R30-B1U-T | ABM3B-26.000MHZ-10-1-U-T | ABM3B-26.000MHZ-10-1-U-T | ABM3B-26.000MHZ-10-B-1-U-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 26.0000MHZ 10PF SMD | CRYSTAL 26.0000MHZ 10PF SMD | CRYSTAL 26.0000MHZ 10PF SMD | CRYSTAL 26.0000MHZ 10PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
