ABM8AIG-8.000MHZ-12-R150-V-T3
lmages are for reference only.ABM8AIG-8.000MHZ-12-R150-V-T3
AEC-Q200 CRYSTAL 8.000MHZ 12PF S
Datasheet4-SMD, No Lead
29,393 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8 MHz ±50ppm Crystal 12pF 150 Ohms 4-SMD, No Lead
ABM8AIG-8.000MHZ-12-R150-V-T3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM8AIG |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 8 MHz |
| Frequency Stability | ±100ppm |
| Frequency Tolerance | ±50ppm |
| Load Capacitance | 12pF |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 150°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

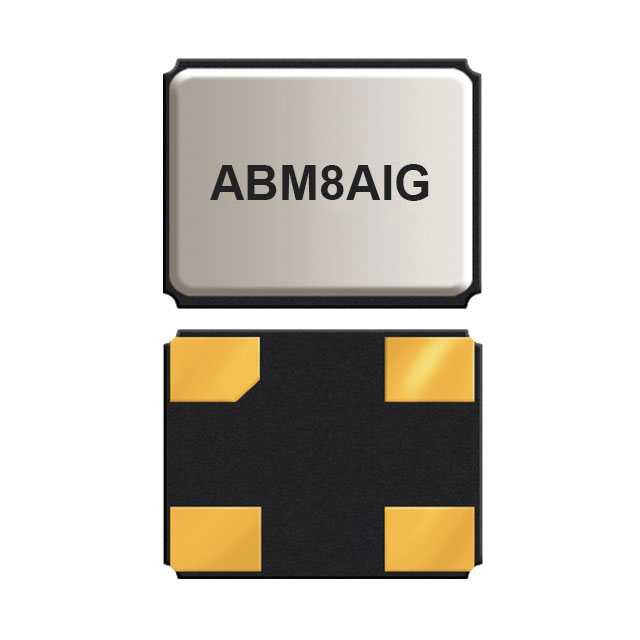

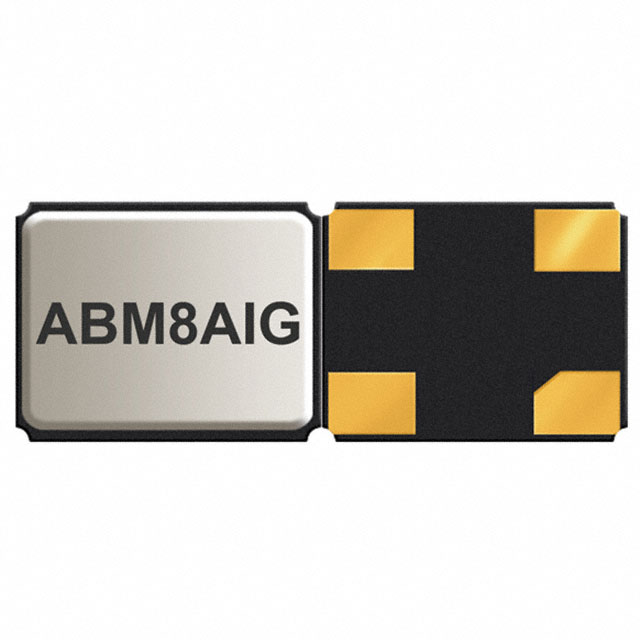

| Part Number | ABM8AIG-8.000MHZ-12-R150-V-T3 | ABM8AIG-8.000MHZ-10-D2Y-T3 | ABM8AIG-8.000MHZ-10-D2Y-T3 | ABM8AIG-8.000MHZ-1Z-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AEC-Q200 CRYSTAL 8.000MHZ 12PF S | CRYSTAL 8.000MHZ 10PF | CRYSTAL 8.000MHZ 10PF | CRYSTAL 8.0000MHZ 18PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
