ABM8G-16.000MHZ-18-D2Y-T

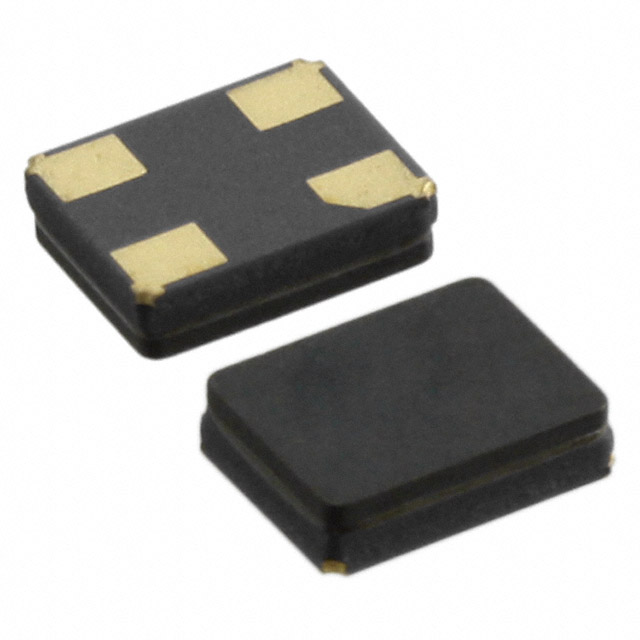

lmages are for reference only.ABM8G-16.000MHZ-18-D2Y-T
CRYSTAL 16.0000MHZ 18PF SMD
Datasheet4-SMD, No Lead
90,508 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16 MHz ±20ppm Crystal 18pF 80 Ohms 4-SMD, No Lead
ABM8G-16.000MHZ-18-D2Y-T
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM8G |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 16 MHz |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABM8G-16.000MHZ-18-D2Y-T | ABM8G-16.000MHZ-18-D2Y-T3 | ABM8G-16.000MHZ-18-D2Y-T3 | ABM8G-16.000MHZ-4Y-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 16.0000MHZ 18PF SMD | CRYSTAL 16.0000MHZ 18PF SMD | CRYSTAL 16.0000MHZ 18PF SMD | CRYSTAL 16.0000MHZ 10PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
