ABM8W-33.8688MHZ-7-J2Z-T3

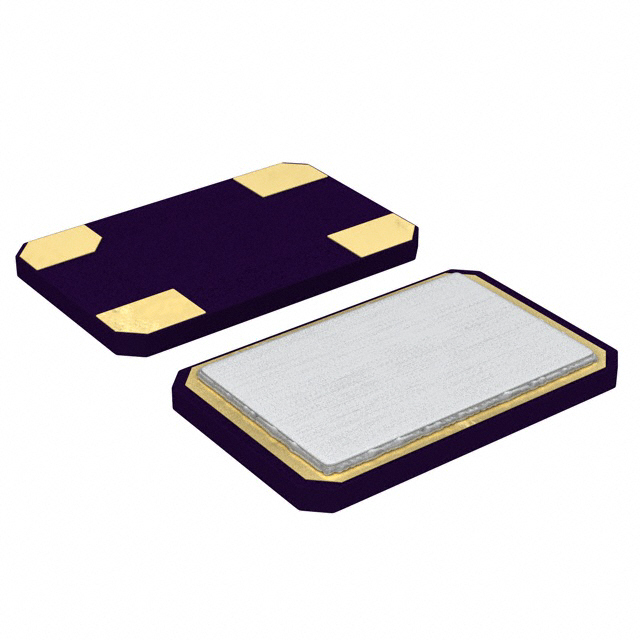

lmages are for reference only.ABM8W-33.8688MHZ-7-J2Z-T3
CRYSTAL 33.8688MHZ 7PF SMD
Datasheet4-SMD, No Lead
25,964 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33.8688 MHz ±20ppm Crystal 7pF 40 Ohms 4-SMD, No Lead
ABM8W-33.8688MHZ-7-J2Z-T3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM8W |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 33.8688 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 7pF |
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | ABM8W-33.8688MHZ-7-J2Z-T3 | ABM8W-33.8688MHZ-7-J2Z-T3 | ABM8W-33.8680MHZ-7-K2Z-T3 | ABM8W-33.8680MHZ-7-K2Z-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 33.8688MHZ 7PF SMD | CRYSTAL 33.8688MHZ 7PF SMD | CRYSTAL 33.8680MHZ 7PF SMD | CRYSTAL 33.8680MHZ 7PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
