ABS2

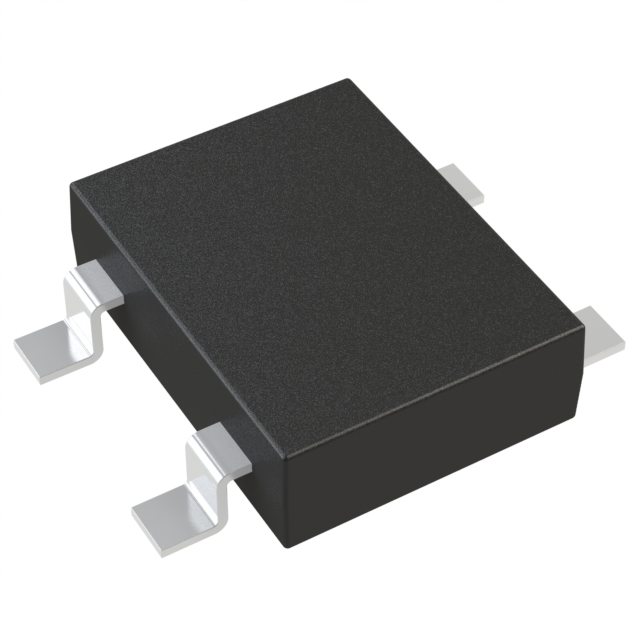

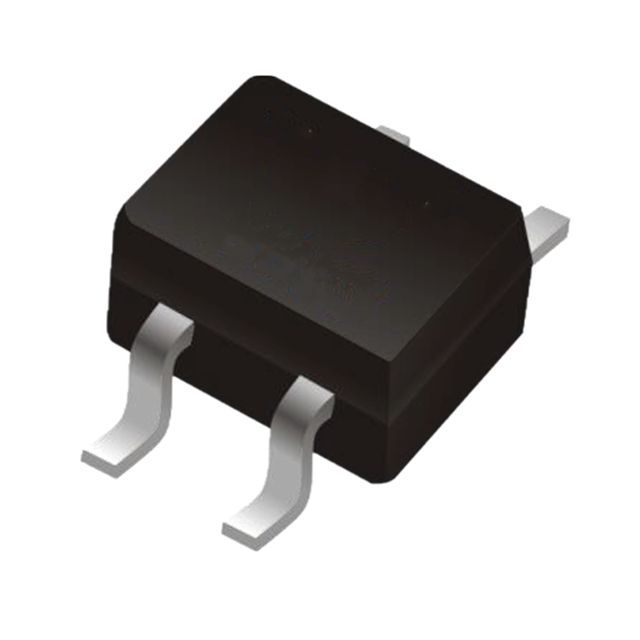

lmages are for reference only.ABS2
1A, 200V, STANDARD BRIDGE RECTIF
Datasheet4-SMD, Gull Wing
43,219 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 200 V Surface Mount ABS
ABS2
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 400 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | ABS |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | ABS05-G | ABS1-G | ABS1-HF | ABS10 |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 50V 1A ABS | BRIDGE RECT 1PHASE 100V 1A ABS | BRIDGE RECT 1PHASE 100V 1A ABS | BRIDGE RECT 1PHASE 1KV 500MA ABS |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
