Product CatalogPart Number
ABS8
Manufacturer
MDDDescription
BRIDGE RECT 1PHASE 800V 1A ABS
Datasheet
DatasheetPackage
4-SMD, Gull Wing
In Stock
74,058 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ABS8
ABS8
lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Surface Mount ABS
Quick Inquiry
ABS8
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | MDD |
| Series | ABS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 41 mA |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | ABS |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | ABS05-G | ABS1-G | ABS1-HF | ABS10 |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 50V 1A ABS | BRIDGE RECT 1PHASE 100V 1A ABS | BRIDGE RECT 1PHASE 100V 1A ABS | BRIDGE RECT 1PHASE 1KV 500MA ABS |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
ABS8
Taiwan Semiconductor Corporation
ABS8
SMC Diode Solutions
ABS8
Diotec Semiconductor

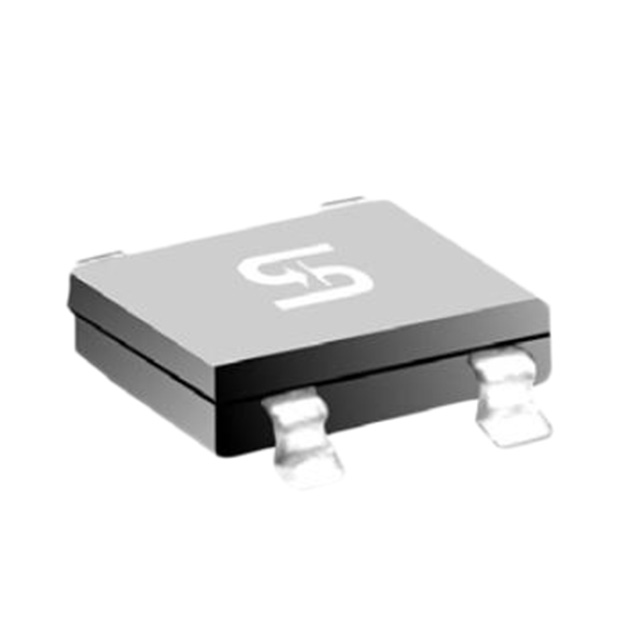

ABS8 REG
Taiwan Semiconductor Corporation
ABS8-G
Comchip Technology
ABS8-HF
Comchip Technology
ABS8-K
Taiwan Semiconductor Corporation
ABS8-T
Taiwan Semiconductor Corporation
ABS8H
Taiwan Semiconductor Corporation

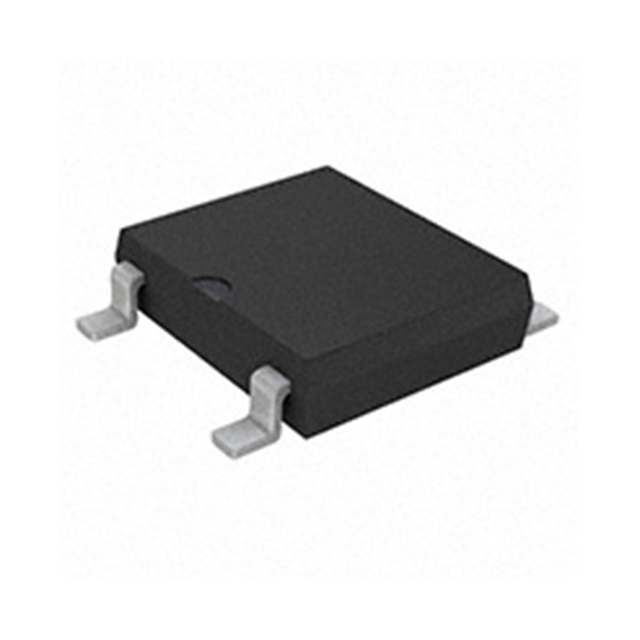

ABS8U
