AC03000004701JAC00

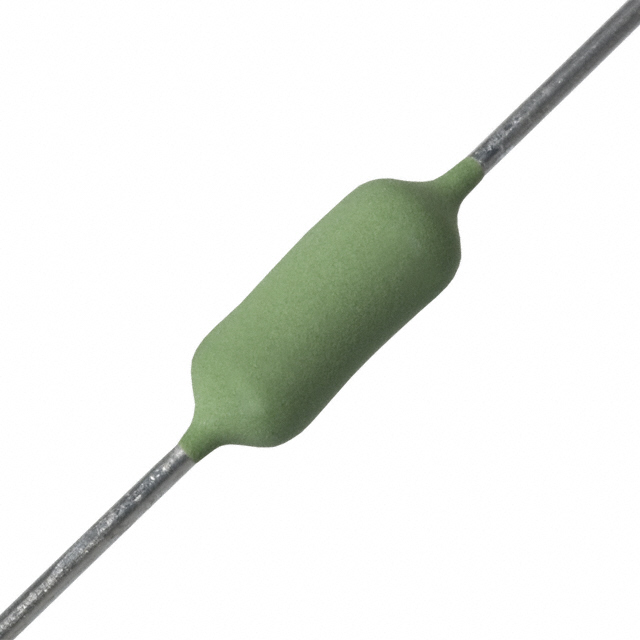

lmages are for reference only.AC03000004701JAC00
RES 4.7K OHM 3W 5% AXIAL
DatasheetAxial
41,203 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 kOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
AC03000004701JAC00
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | AC |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 4.7 kOhms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Wirewound |
| Features | Flame Retardant Coating, Pulse Withstanding, Safety |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -40°C ~ 275°C |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

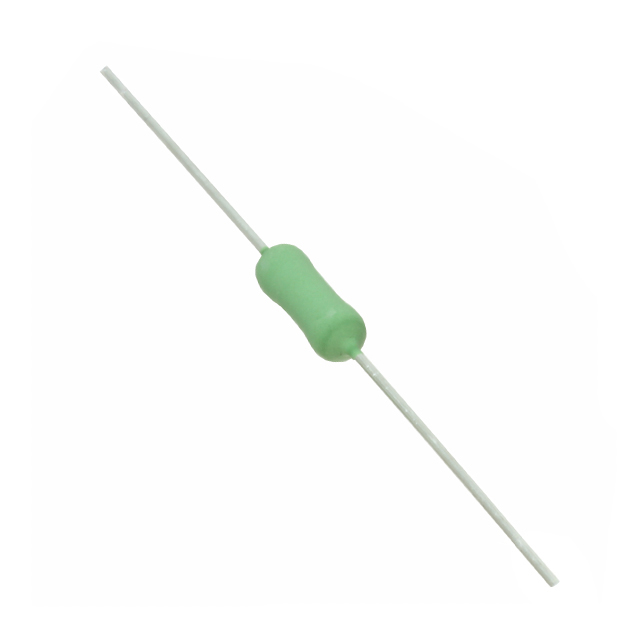

| Part Number | AC03000004700JAC00 | AC03000004707JAC00 | AC03000004708JAC00 | AC03000004708JACCS |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 470 OHM 3W 5% AXIAL | RES 0.47 OHM 3W 5% AXIAL | RES 4.7 OHM 3W 5% AXIAL | RES 4.7 OHM 5% 3W AXIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
