200 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 70mA DCR 5.5Ohm

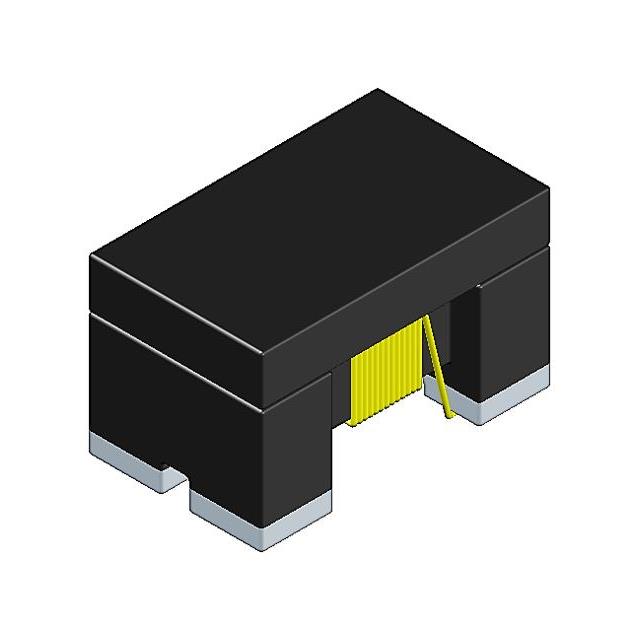

ACM 3225F2UV-201T007-S
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | ACM3225F2UV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 200 µH @ 100 kHz |
| Current Rating (Max) | 70mA |
| DC Resistance (DCR) (Max) | 5.5Ohm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.130" L x 0.098" W (3.30mm x 2.50mm) |
| Height (Max) | 0.098" (2.50mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACM 3225F2DV-101T01-D | ACM 3225F2DV-110T03-D | ACM 3225F2DV-220T02-D | ACM 3225F2DV-510T02-D |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 100 UH @ 100 KHZ 2 LINE COMMON M | 11 UH @ 100 KHZ 2 LINE COMMON MO | 22 UH @ 100 KHZ 2 LINE COMMON MO | 51 UH @ 100 KHZ 2 LINE COMMON MO |
| Series | ACM3225F2DV-D | ACM3225F2DV | ACM3225F2DV | ACM3225F2DV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
