AD8556ACPZ-R2
lmages are for reference only.AD8556ACPZ-R2
IC OPAMP ZER-DRIFT 1CIRC 16LFCSP
Datasheet16-VQFN Exposed Pad, CSP
36,895 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zero-Drift Amplifier 1 Circuit 16-LFCSP-VQ (4x4)
AD8556ACPZ-R2
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | Analog Devices Inc. |
| Series | DigiTrim® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 2 MHz |
| Current - Input Bias | 49 nA |
| Voltage - Input Offset | 2 µV |
| Current - Supply | 2mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 140°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Base Product Number | AD8556 |
| Current - Output / Channel | 10 mA |
| -3db Bandwidth | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

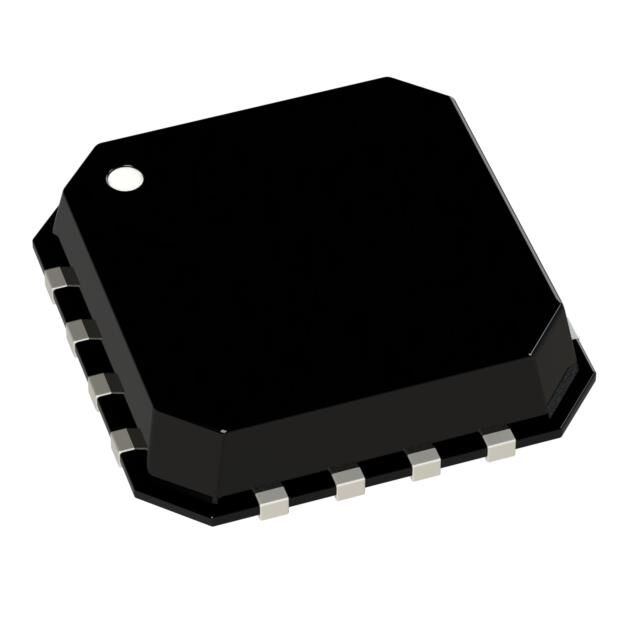

| Part Number | AD8556ACPZ-REEL | AD8556ACPZ-REEL7 | AD8556ARZ | AD8556ARZ-REEL |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC OPAMP ZER-DRIFT 1CIRC 16LFCSP | IC OPAMP ZER-DRIFT 1CIRC 16LFCSP | IC OPAMP ZERO-DRIFT 1 CIRC 8SOIC | IC OPAMP ZERO-DRIFT 1 CIRC 8SOIC |
| Series | DigiTrim® | DigiTrim® | DigiTrim® | DigiTrim® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |

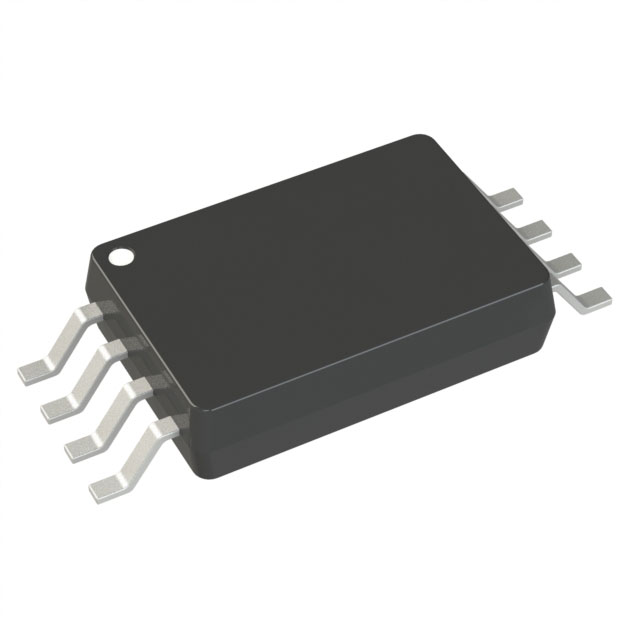

Recommended Products
| Delivery Time | In-stock items can be shipped within 24 hours. Some parts will be arranged for delivery within 1-2 days from the date all items arrive at our warehouse. And Orwintech ships order once a day at about 17:00, except Sunday. Once the goods are shipped, the estimated delivery time depends on the shipping methods and Delivery destination. The table below shows are the logistic time for some common countries. |
| Delivery Cost | Use your express account for shipment if you have one. Use our account for the shipment. Refer to the table below for the approximate charges. (Different time frame / countries / package size has different price.) |
| Delivery Method | Global Common Shipment by DHL / UPS / FedEx / TNT / EMS / SF we support. Others more shipping ways, please get in touch with us. |
| Region | Country | Logistic Time(Day) |
| America | United States | 5 |
| Brazil | 7 | |
| Europe | Germany | 5 |
| United Kingdom | 4 | |
| Ltaly | 5 | |
| Oceania | Australia | 6 |
| New Zealand | 5 | |
| Asia | India | 4 |
| Japan | 4 | |
| Middle East | Israel | 6 |
| Shipment charges(KG) | Reference DHL(USD$) |
| 0.00kg-1.00kg | USD$30.00 - USD$60.00 |
| 1.00kg-2.00kg | USD$40.00 - USD$80.00 |
| 2.00kg-3.00kg | USD$50.00 - USD$100 |
