AD9235BCP-20

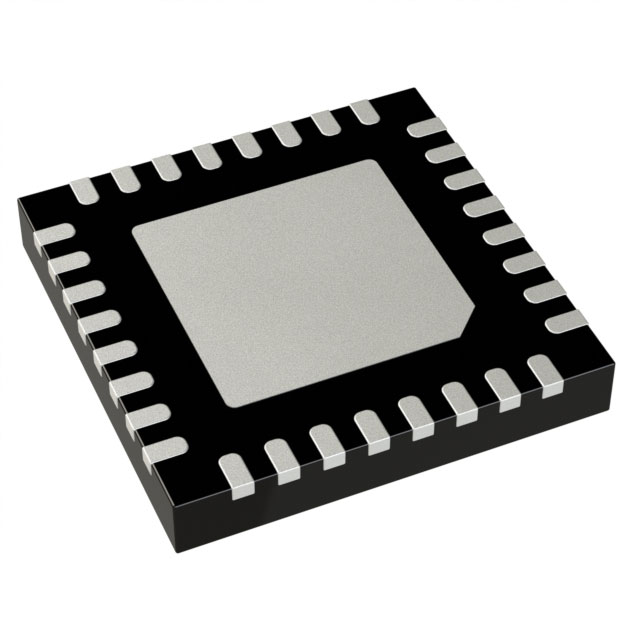

lmages are for reference only.AD9235BCP-20
12-BIT ADC, PARALLEL WORD ACCESS
Datasheet32-WFQFN Exposed Pad, CSP
54,216 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-LFCSP-WQ (5x5)
AD9235BCP-20
| Category | Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters ADC |
| Manufacturer | Analog Devices Inc. |
| Series | AD9235 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.25V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AD9235BCP-40 | AD9235BCP-65 | AD9235BCPZ-20 | AD9235BCPZ-40 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 12-BIT ADC, PARALLEL WORD ACCESS | IC ADC 12BIT 65MSPS 32-LFCSP | IC ADC 12BIT PIPELINED 32LFCSP | IC ADC 12BIT PIPELINED 32LFCSP |
| Series | AD9235 | - | - | - |
| Packaging | Bulk | Bag | Tray | Tray |
