ADE4D20120G
lmages are for reference only.ADE4D20120G
DIODE SIL SIC 1200V 56A TO263-2
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
59,550 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 1200 V 56A Surface Mount TO-263-2
ADE4D20120G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Analog Power Inc. |
| Series | WBG |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 56A |
| Voltage - Forward (Vf) (Max) @ If | 1.85 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 20 µA @ 1200 V |
| Capacitance @ Vr, F | 12pF @ 0V, 100kHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

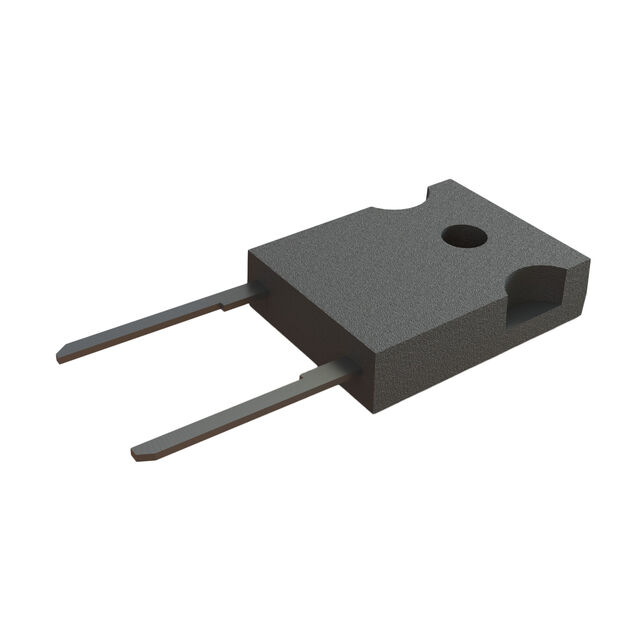

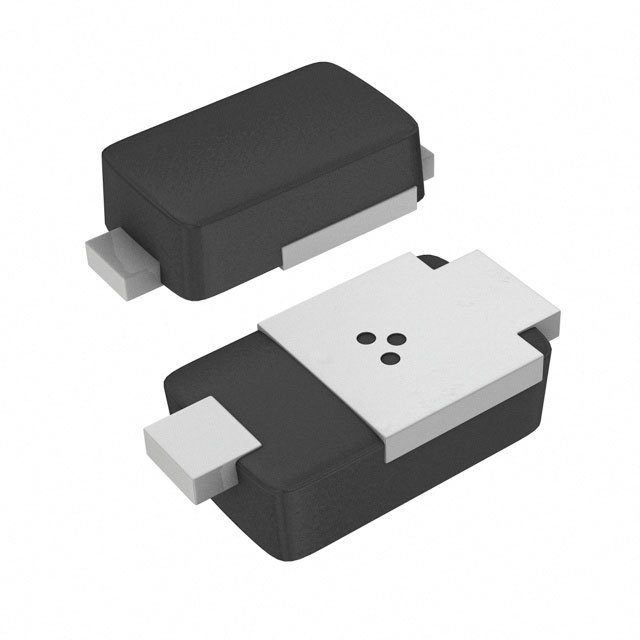

| Part Number | ADE4D20120D | AM01WK | AK 06 | AS1PMHM3/84A |
| Manufacturer | Analog Power Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DIODE SIL SIC 1200V 33A TO247-3 | DIODE GEN PURP 400V 1A AXIAL | DIODE SCHOTTKY 60V 700MA AXIAL | DIODE AVALANCHE 1KV 1.5A DO220AA |
| Series | WBG | - | - | eSMP® |
| Packaging | Tube | Tape & Box (TB) | Bulk | Tape & Reel (TR) |
