ADFC15-2450.00-A-T
lmages are for reference only.ADFC15-2450.00-A-T
RF FILTER BAND PASS 2.45GHZ 0402
Datasheet0402 (1005 Metric), 4 PC Pad
41,144 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 1.4dB 0402 (1005 Metric), 4 PC Pad
ADFC15-2450.00-A-T
| Category | Filters - RF Filters - |
| Manufacturer | Abracon LLC |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 2.45GHz Center |
| Bandwidth | 100MHz |
| Filter Type | Band Pass |
| Ripple | 0.5dB |
| Insertion Loss | 1.4dB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height (Max) | 0.017" (0.43mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

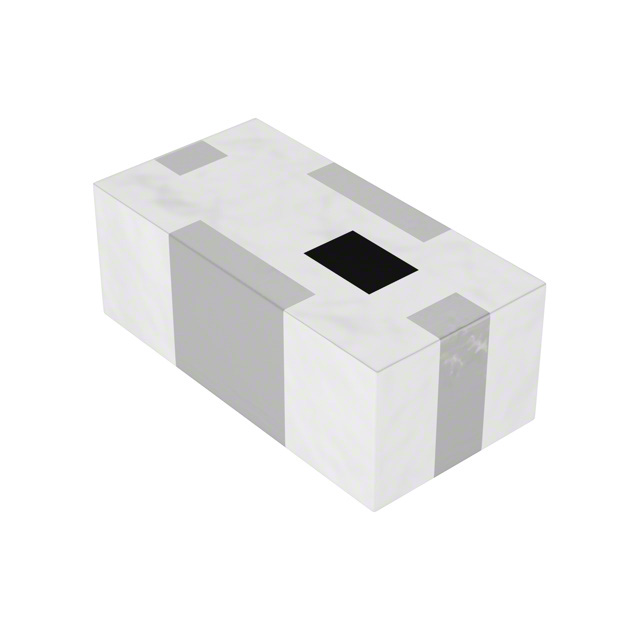

| Part Number | ADFC18-2450.00-A-T | ADFC21-5390.00-A-T | BPF2012LRAGR2400L | LP0402N5200ANTR |
| Manufacturer | Abracon LLC | Abracon LLC | Pulse Electronics | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER BAND PASS 2.45GHZ 0603 | RF FILTER BAND PASS 5.39GHZ | 2012 2.4GHZ BPF TYPEAG | RF FILTER LOW PASS 5.2GHZ 0402 |
| Series | - | * | - | LP0402N |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> |
