ADG1309BRUZ-REEL7

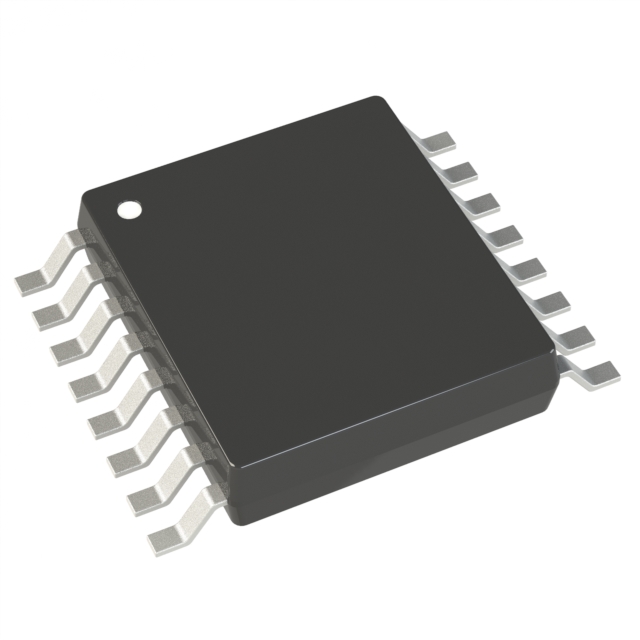

lmages are for reference only.ADG1309BRUZ-REEL7
IC SWITCH SP4TX2 210OHM 16TSSOP
Datasheet16-TSSOP (0.173", 4.40mm Width)
72,348 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Circuit IC Switch 4:1 210Ohm 16-TSSOP
ADG1309BRUZ-REEL7
| Category | Integrated Circuits (ICs) - Interface - Analog Switches-Multiplexers-Demultiplexers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 210Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 100ns, 100ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 15pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADG1309 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | ADG1309BRUZ | ADG1309BRUZ | ADG1309BRUZ-REEL7 | ADG1309BRZ |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC SWITCH SP4TX2 210OHM 16TSSOP | IC SWITCH SP4TX2 210OHM 16TSSOP | IC SWITCH SP4TX2 210OHM 16TSSOP | IC SWITCH SP4T X 2 210OHM 16SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
