ADP5042ACPZ-1-R7
lmages are for reference only.ADP5042ACPZ-1-R7
IC REG TRPL BCK/LNR SYNC 20LFCSP
Datasheet20-WFQFN Exposed Pad, CSP
55,935 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PMIC - Voltage Regulators - Linear Switching 3 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (2) 3MHz 20-LFCSP (4x4)
ADP5042ACPZ-1-R7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear Switching |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (2) |
| Number of Outputs | 3 |
| Frequency - Switching | 3MHz |
| Voltage/Current - Output 1 | 1.8V, 800mA |
| Voltage/Current - Output 2 | 1.5V, 300mA |
| Voltage/Current - Output 3 | 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | Yes |
| w/Sequencer | Yes |
| Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Base Product Number | ADP5042 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

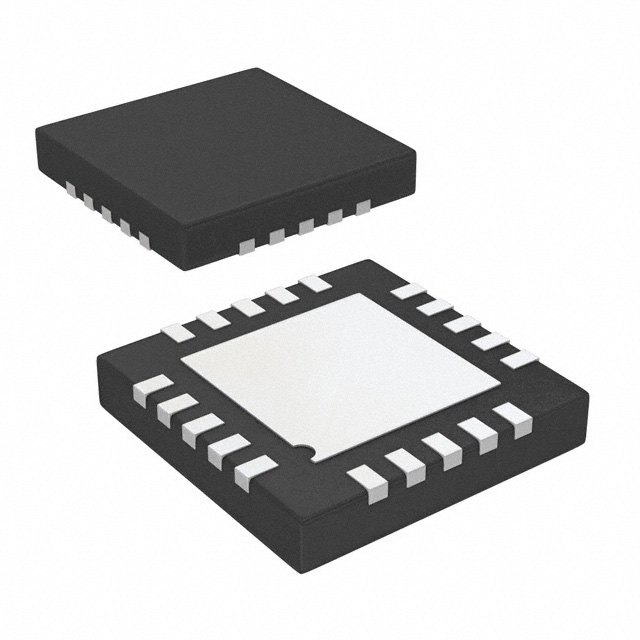

| Part Number | ADP5042ACPZ-2-R7 | ADP5040ACPZ-1-R7 | ADP5041ACPZ-1-R7 | ADP5043ACPZ-1-R7 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG TRPL BCK/LNR SYNC 20LFCSP | IC REG TRPL BCK/LNR SYNC 20LFCSP | IC REG TRPL BCK/LNR SYNC 20LFCSP | IC REG DL BUCK/LNR 3MHZ 20LFCSP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
