ADUM320N0BRZ-RL7
lmages are for reference only.ADUM320N0BRZ-RL7
IC, ROBUST DUAL ISO 2:0
Datasheet8-SOIC (0.154", 3.90mm Width)
63,940 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 5700Vrms 2 Channel 150Mbps 100kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
ADUM320N0BRZ-RL7
| Category | Isolators - Digital Isolators - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 10ns, 10ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

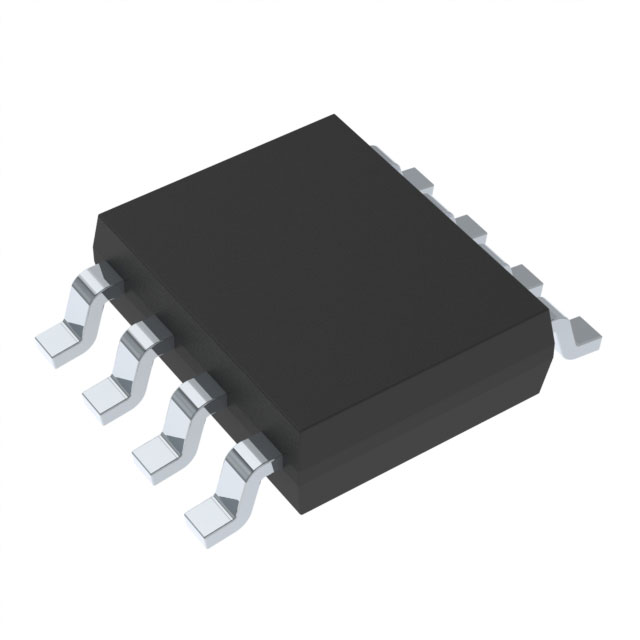

| Part Number | ADUM320N0BRIZ | ADUM320N0BRIZ-RL | ADUM320N0BRZ | ADUM3200ARZ |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC, ROBUST DUAL ISO 2:0 | IC, ROBUST DUAL ISO 2:0 | IC, ROBUST DUAL ISO 2:0 | DGTL ISO 2500VRMS 2CH GP 8SOIC |
| Series | - | - | - | iCoupler® |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
