ADZ22112V
Manufacturer
Panasonic Electric WorksDescription
RELAY GEN PURPOSE SPST 120A 12V
Datasheet
DatasheetPackage
-
In Stock
40,758 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ADZ22112V
ADZ22112V
lmages are for reference only.Payment Methods
Delivery Services

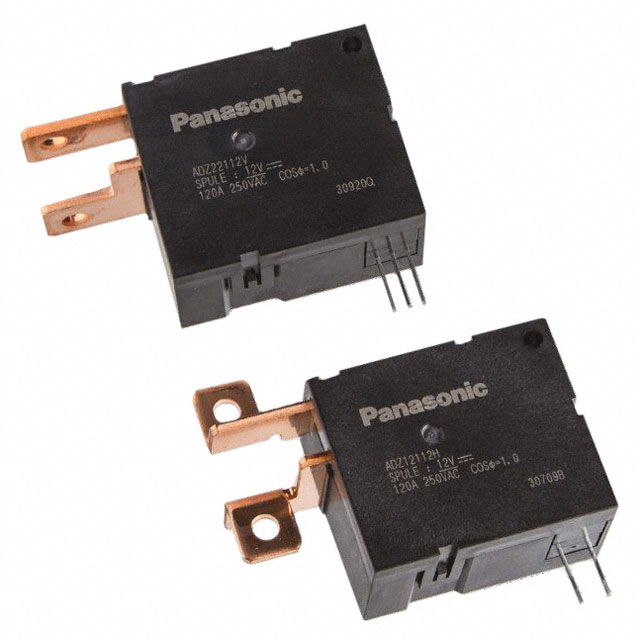

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
Quick Inquiry
ADZ22112V
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Panasonic Electric Works |
| Series | ADZ |
| Packaging | Box |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 120 A |
| Switching Voltage | 276VAC - Max |
| Load - Max Switching | 33120VA |
| Coil Current | 233.3 mA |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | Solder Lug |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 51.4 Ohms |
| Base Product Number | ADZ221 |
