AE18000SSH6577
lmages are for reference only.AE18000SSH6577
RF FILTER HIGH PASS 18GHZ MODULE
DatasheetModule, SMA Connectors
102,972 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
18GHz (Cutoff) Frequency High Pass RF Filter (Radio Frequency) 10GHz Bandwidth 2dB Module, SMA Connectors
AE18000SSH6577
| Category | Filters - RF Filters - |
| Manufacturer | Anatech Electronics Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Frequency | 18GHz (Cutoff) |
| Bandwidth | 10GHz |
| Filter Type | High Pass |
| Ripple | - |
| Insertion Loss | 2dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
| Height (Max) | 0.394" (10.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

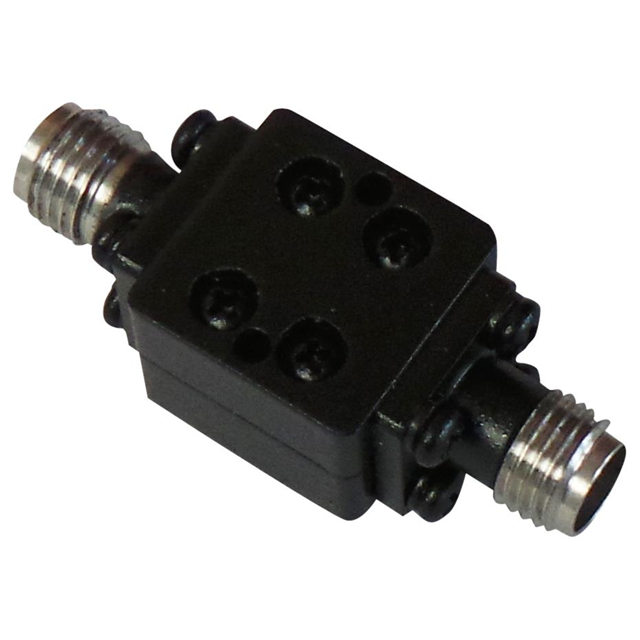

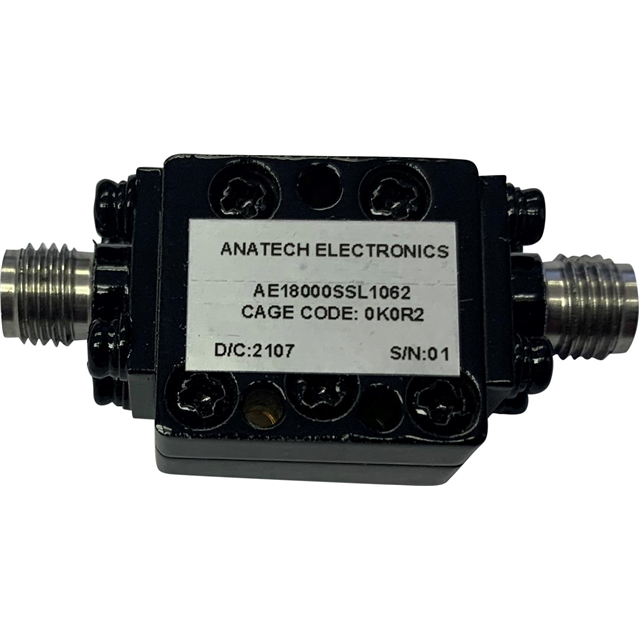

| Part Number | AE18000SSH6580 | AE18000SSH6615 | AE18000SSL1062 | AE18000L9251 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| RoHS Status | ROHS3 Compliant | Not applicable | Not applicable | Not applicable |
| Description | RF FILTER HIGH PASS 18GHZ MODULE | RF FILTER HIGH PASS 18GHZ MODULE | RF FILTER LOW PASS 18GHZ MODULE | RF FILTER LOW PASS 18.9GHZ SMA |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
