AE20B11018
lmages are for reference only.AE20B11018
RF FILTER BAND PASS 20MHZ BNC
DatasheetBNC In-Line Module
22,039 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20MHz Center Frequency Band Pass RF Filter (Radio Frequency) 10MHz Bandwidth 2dB BNC In-Line Module
AE20B11018
| Category | Filters - RF Filters - |
| Manufacturer | Anatech Electronics Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | Not applicable |
| Frequency | 20MHz Center |
| Bandwidth | 10MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 2dB |
| Mounting Type | Chassis Mount |
| Package / Case | BNC In-Line Module |
| Size / Dimension | 2.500" L x 1.125" W (63.50mm x 28.58mm) |
| Height (Max) | 0.750" (19.05mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

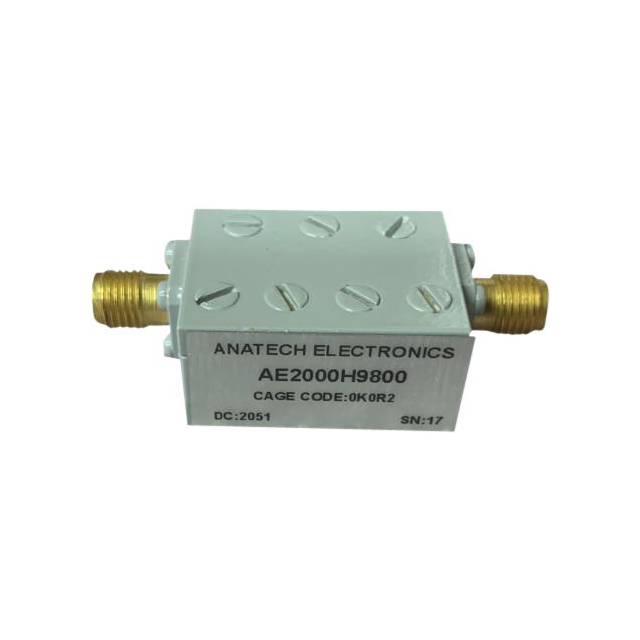

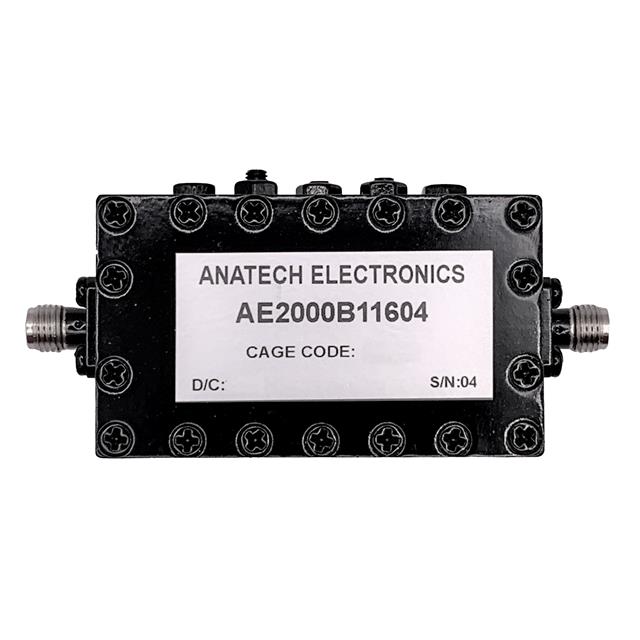

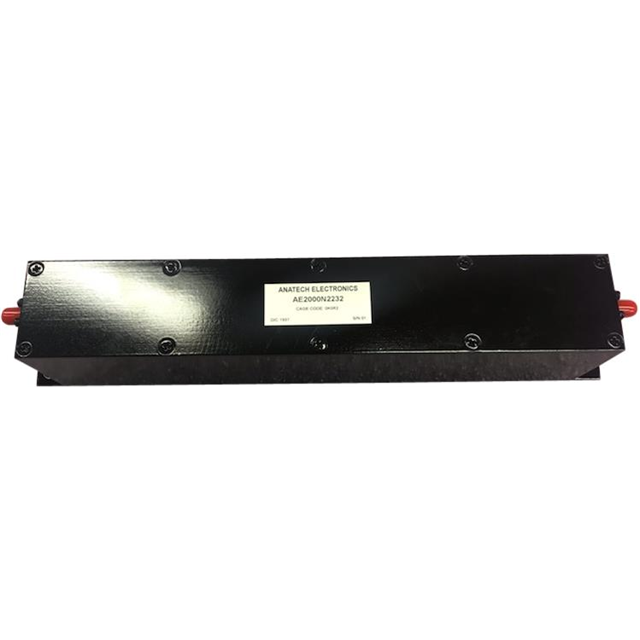

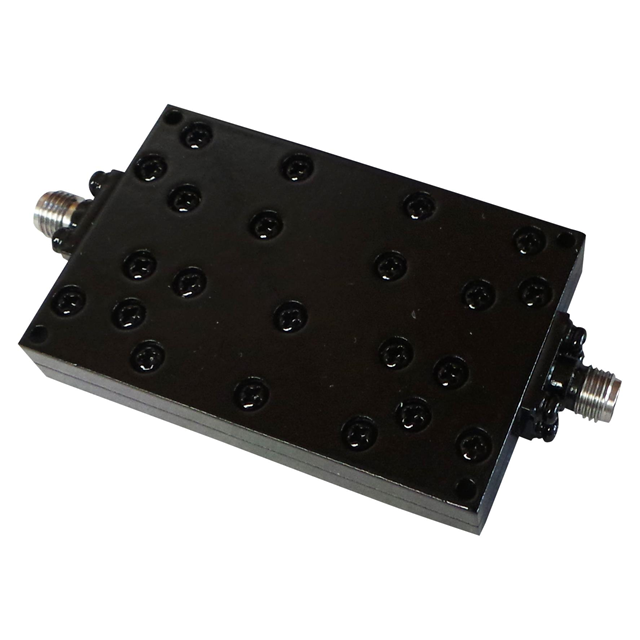

| Part Number | AE2000B11604 | AE2000H9800 | AE2000N2232 | AE2000SSH6549 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| RoHS Status | Not applicable | Not applicable | Not applicable | ROHS3 Compliant |
| Description | RF FILTER BAND PASS 2GHZ MODULE | RF FILTER HIGH PASS 2GHZ MODULE | RF FILTER BAND STOP 2GHZ MODULE | RF FILTER HIGH PASS 2GHZ MODULE |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
