AE45B6758
lmages are for reference only.AE45B6758
RF FILTER BAND PASS 45MHZ 6DIP
Datasheet6-DIP Module
52,400 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
45MHz Center Frequency Band Pass RF Filter (Radio Frequency) 10MHz Bandwidth 6-DIP Module
AE45B6758
| Category | Filters - RF Filters - |
| Manufacturer | Anatech Electronics Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | Not applicable |
| Frequency | 45MHz Center |
| Bandwidth | 10MHz |
| Filter Type | Band Pass |
| Ripple | 0.1dB |
| Insertion Loss | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.500" L x 0.750" W (38.10mm x 19.05mm) |
| Height (Max) | 0.500" (12.70mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |

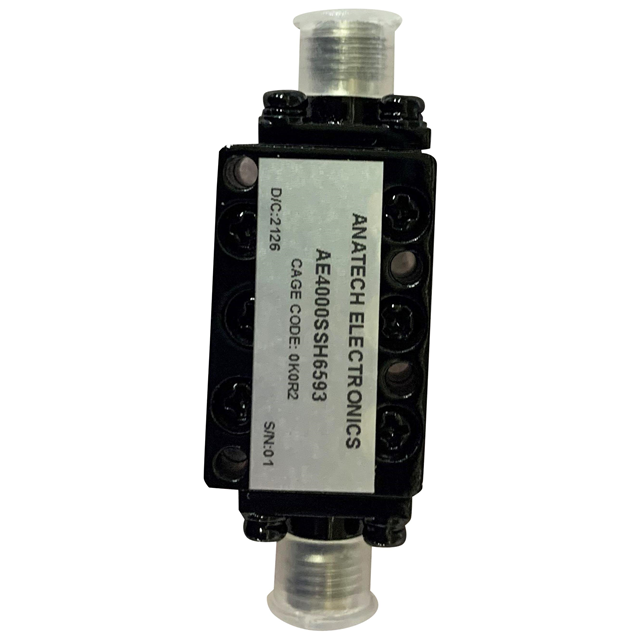

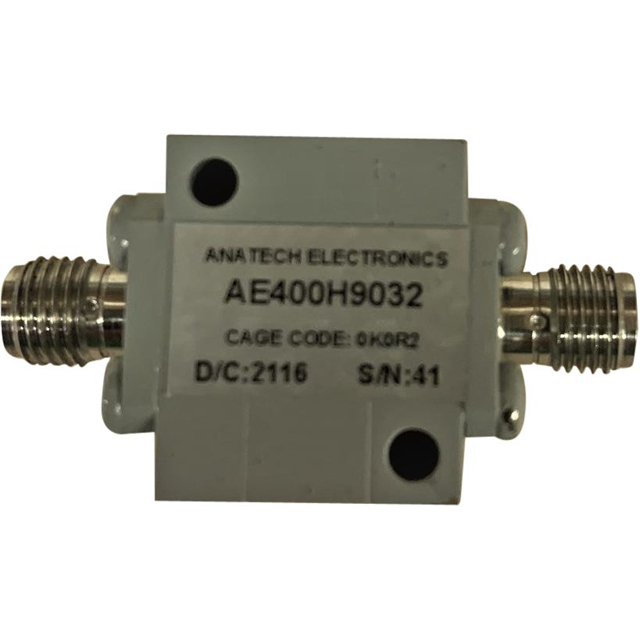

| Part Number | AE4.90B10716 | AE4000L8873 | AE4000SSH6593 | AE400H9032 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| RoHS Status | Not applicable | Not applicable | Not applicable | Not applicable |
| Description | RF FILTER BAND PASS 4.9MHZ BNC | RF FILTER LOW PASS 4GHZ MODULE | RF FILTER HIGH PASS 4GHZ MODULE | RF FILTER HI PASS 400MHZ MODULE |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
