Product CatalogPart Number
AEE00CC48-M
Manufacturer
ARTESYN / Advanced EnergyDescription
DC DC CONVERTER +/-15V 10W
Datasheet
DatasheetPackage
5-DIP Module
In Stock
23,447 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

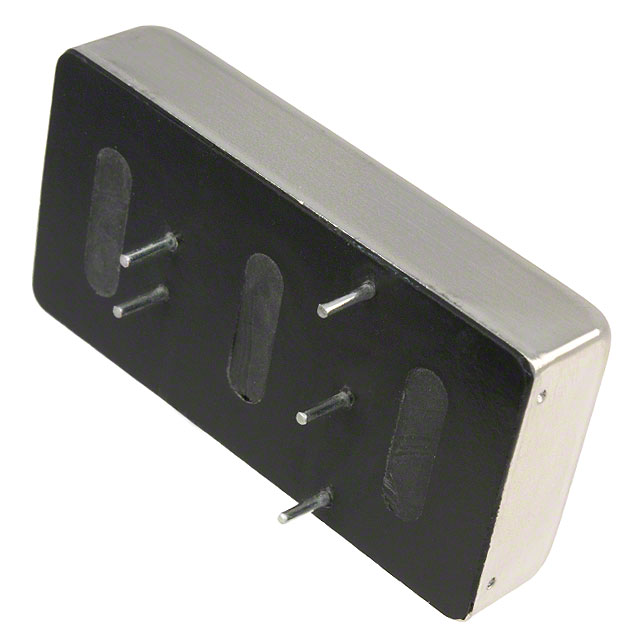

AEE00CC48-M
AEE00CC48-M
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 36V - 75V Input
Quick Inquiry
AEE00CC48-M
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AEE10W-M (10W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 333mA, 333mA |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial), Medical |
| Features | OCP, OTP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AEE00CC |
| Voltage - Isolation | 4.2 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AEE00CC48 | AEE00B12-M | AEE00B24-M | AEE00B48-M |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER +/-15V 10W | DC DC CONVERTER 12V 10W | DC DC CONVERTER 12V 10W | DC DC CONVERTER 12V 10W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Bulk | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products

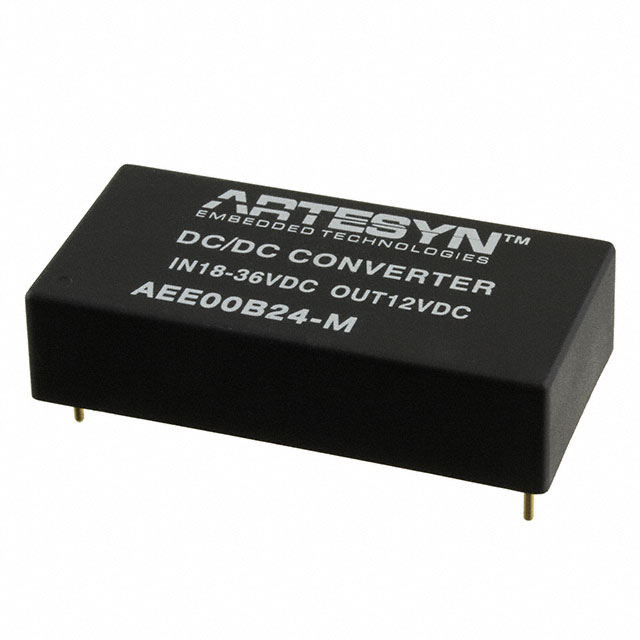

AEE00B12-M
ARTESYN / Advanced Energy
AEE00B24-M
ARTESYN / Advanced Energy

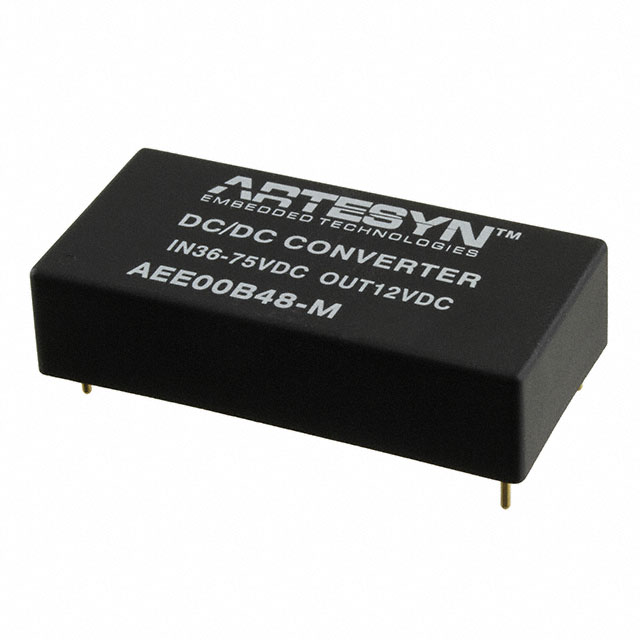

AEE00B48-M
