AEQ5-300FL0.5
lmages are for reference only.AEQ5-300FL0.5
HVPS,300VDC, 5V INPUT, 0.5 WATT,
Datasheet6-DIP Module
43,690 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Isolated Module DC DC Converter 1 Output 300V 1.67mA 4.5V - 5.5V Input
AEQ5-300FL0.5
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | UltraVolt© AEQ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 300V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.67mA |
| Power (Watts) | 500 mW |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -25°C ~ 70°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) |
| Supplier Device Package | Module |
| Control Features | - |
| Approval Agency | No |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
|
 |
|

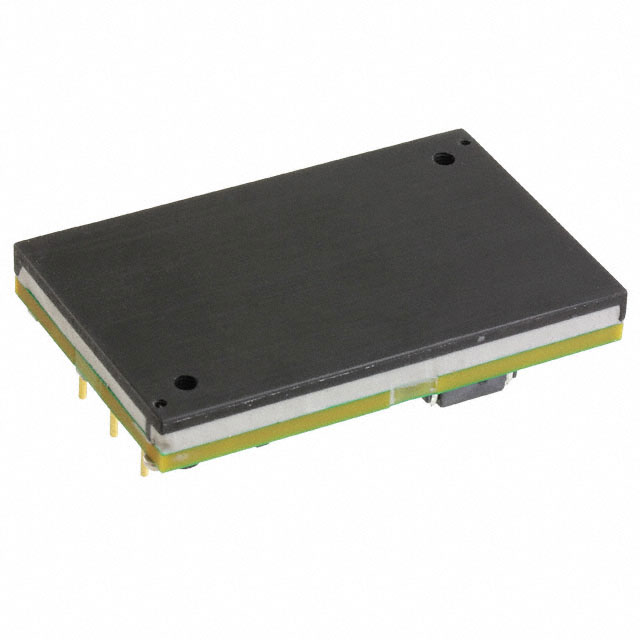

| Part Number | AEQ5-300BP0.5 | AEQ5-300FL0.5 | AEQ20B48N-L | AEQ30E48N-L |
| Manufacturer | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | HVPS,+/-300VDC, BIPOLAR W/CT, 5V | HVPS,300VDC, 5V INPUT, 0.5 WATT, | DC DC CONVERTER 12V 240W | DC DC CONVERTER |
| Series | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Bulk | Bulk | Tray | Bulk |
