AHCFA-18-1P

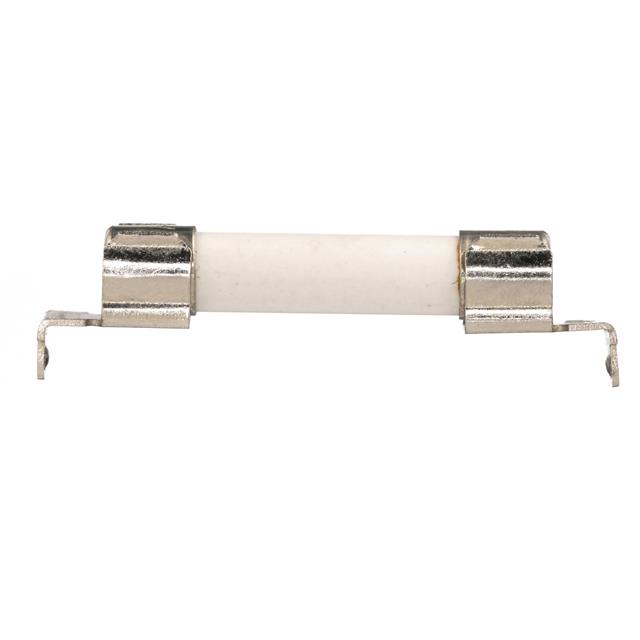

lmages are for reference only.AHCFA-18-1P
FUSE PCB 6X32MM AUTO 18A
DatasheetRadial Bend Cylinder
96,945 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
18A 500 VAC 500 VDC Fuse Cartridge Through Hole
AHCFA-18-1P
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | AHCFA |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 18A |
| Voltage Rating - AC | 500 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 20kA |
| Package / Case | Radial Bend Cylinder |
| Size / Dimension | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Base Product Number | - |
| Voltage Rating - DC | 500 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | 0.005 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | AHCFA-18-PCB | AHCFA-18-PCBHT | AHCFA-18-PCBR | AHCFA-20-1P |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE PCB 6X32MM AUTO 18A | FUSE PCB 6X32MM AUTO 18A | FUSE PCB 6X32MM AUTO 18A | FUSE PCB 6X32MM AUTO 20A |
| Series | AHCFA | AHCFA | AHCFA | AHCFA |
| Packaging | Tray | Tray | Tray | Tray |
