Product CatalogPart Number
AHV12VN8KV2R5MAW
Manufacturer
Analog Technologies, Inc.Description
HV 12V to -8kV 20W DC-DC Convert
Datasheet
DatasheetPackage
-
In Stock
92,139 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AHV12VN8KV2R5MAW
AHV12VN8KV2R5MAW

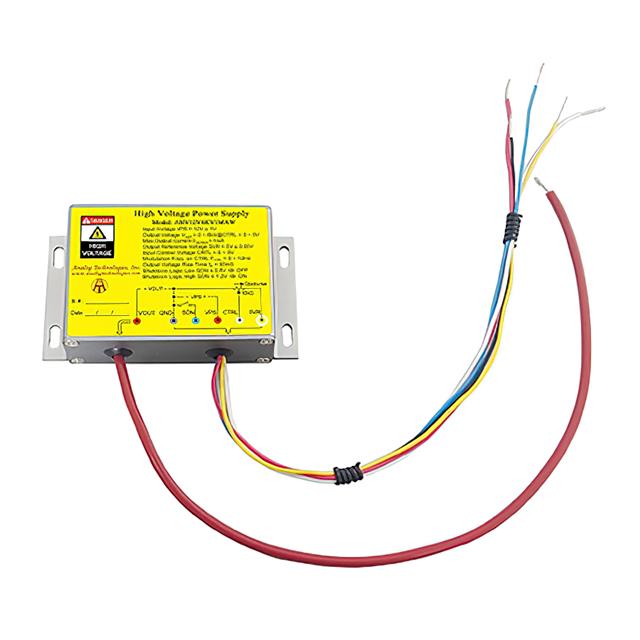

lmages are for reference only.Payment Methods
Delivery Services
Enclosed DC DC Converter 1 Output 0 ~ -8000V 2.5mA 13V Input
Quick Inquiry
AHV12VN8KV2R5MAW
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Analog Technologies, Inc. |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | Enclosed |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0 ~ -8000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5mA |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 70% |
| Operating Temperature | -10°C ~ 55°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | AHV12VN8KV1MAW | AHV12V10KV1MAW | AHV12V10KV1MAW | AHV12V1500V10MAW |
| Manufacturer | Analog Technologies | Analog Technologies | Analog Technologies, Inc. | Analog Technologies |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | High Voltage - Non-Isolated | High Voltage - Non-Isolated | HV 12V to 10kV 10W DC-DC Convert | High Voltage - Non-Isolated |
| Series | - | - | - | - |
| Packaging | Tape & Box (TB) | Bulk | Tape & Box (TB) | Tape & Box (TB) |
