Product CatalogPart Number
AIAC-1812-R12J-T
Manufacturer
Abracon LLCDescription
FIXED IND 120NH 2.2A 11.1MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
23,448 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AIAC-1812-R12J-T
AIAC-1812-R12J-T
lmages are for reference only.Payment Methods
Delivery Services
120 nH Unshielded Wirewound Inductor 2.2 A 11.1mOhm Max Nonstandard
Quick Inquiry
AIAC-1812-R12J-T
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AIAC-1812 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 120 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 2.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11.1mOhm Max |
| Q @ Freq | 100 @ 150MHz |
| Frequency - Self Resonant | 1.1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.138" W (4.70mm x 3.50mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AIAC-1812-22NK-T | AIAC-1812-27NK-T | AIAC-1812-33NK-T | AIAC-1812-39NJ-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22NH 3.2A 4.8 MOHM SMD | FIXED IND 27NH 3.5A 4.6 MOHM SMD | FIXED IND 33NH 3A 5.9 MOHM SMD | FIXED IND 39NH 2.8A 5.6 MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
AIAC-0805C-10NK-T
Abracon LLC
AIAC-0805C-12NK-T
Abracon LLC
AIAC-0805C-15NK-T
Abracon LLC
AIAC-0805C-18NK-T
Abracon LLC
AIAC-0805C-22NK-T
Abracon LLC
AIAC-0805C-22NK-T
Abracon LLC
AIAC-0805C-27NK-T
Abracon LLC
AIAC-0805C-33NK-T
Abracon LLC
AIAC-0805C-39NK-T
Abracon LLC
AIAC-0805C-39NK-T
Abracon LLC
AIAC-0805C-3N9K-T
Abracon LLC

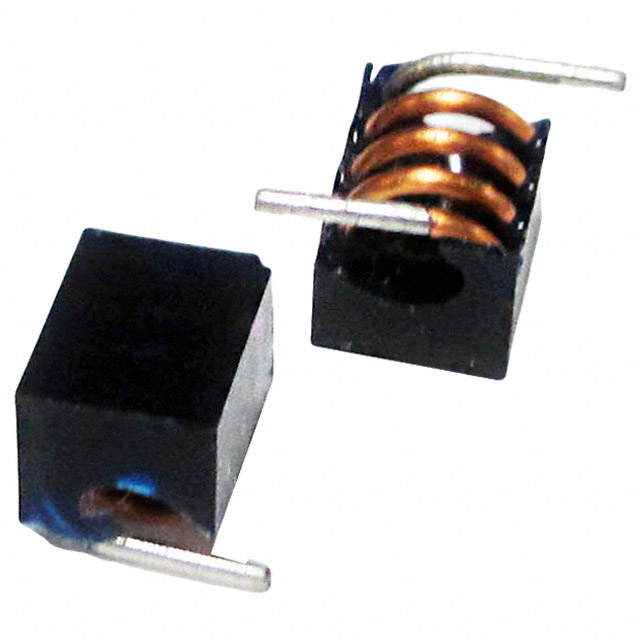

AIAC-0805C-47NK-T
