AISC-1210H-150K-T

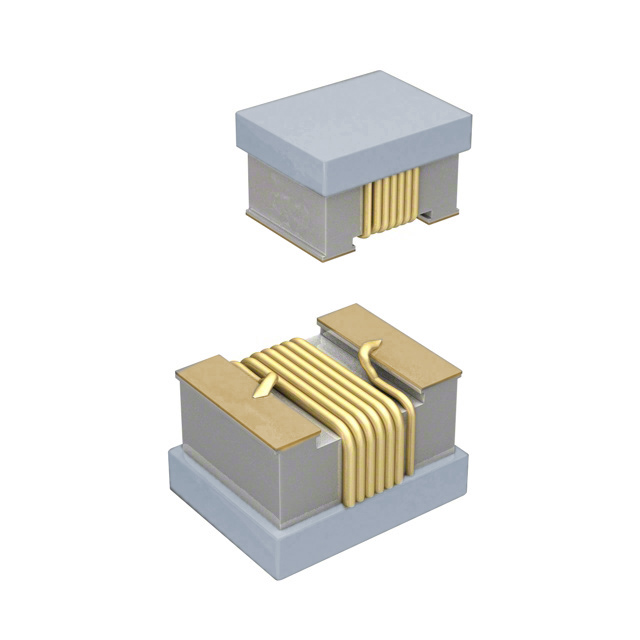

lmages are for reference only.AISC-1210H-150K-T
FIXED IND 15UH 550MA 760MOHM SMD
Datasheet1210 (3225 Metric)
13,859 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µH Unshielded Drum Core, Wirewound Inductor 550 mA 760mOhm Max 1210 (3225 Metric)
AISC-1210H-150K-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AISC-1210H |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 550 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 760mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 26MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.138" L x 0.098" W (3.50mm x 2.50mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | AISC-1210H-150K-T | AISC-1210H-120K-T | AISC-1210H-121K-T | AISC-1210H-151K-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 15UH 550MA 760MOHM SMD | FIXED IND 12UH 610MA 674MOHM SMD | FIXED IND 120UH 160MA 7.47OHM SM | FIXED IND 150UH 140MA 8.32OHM SM |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
