AISC-Q1008-15NK-T
lmages are for reference only.AISC-Q1008-15NK-T
FIXED IND 15NH 1A 0.11OHM SMD
Datasheet1008 (2520 Metric)
49,363 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 nH Unshielded Wirewound Inductor 1 A 110mOhm Max 1008 (2520 Metric)
AISC-Q1008-15NK-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AISC-Q1008 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 15 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110mOhm Max |
| Q @ Freq | 50 @ 500MHz |
| Frequency - Self Resonant | 2.5GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

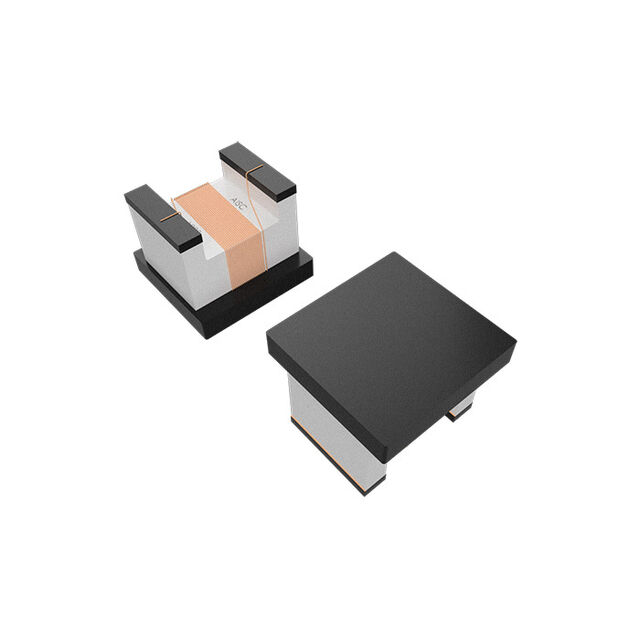

| Part Number | AISC-Q1008-15NG-T | AISC-Q1008-15NJ-T | AISC-Q1008-103G-T | AISC-Q1008-103J-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 15NH 1A 0.11OHM SMD | FIXED IND 15NH 1A 0.11OHM SMD | FIXED IND 10UH 150MA 9OHM SMD | FIXED IND 10UH 150MA 9OHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
