ALD12A48-L

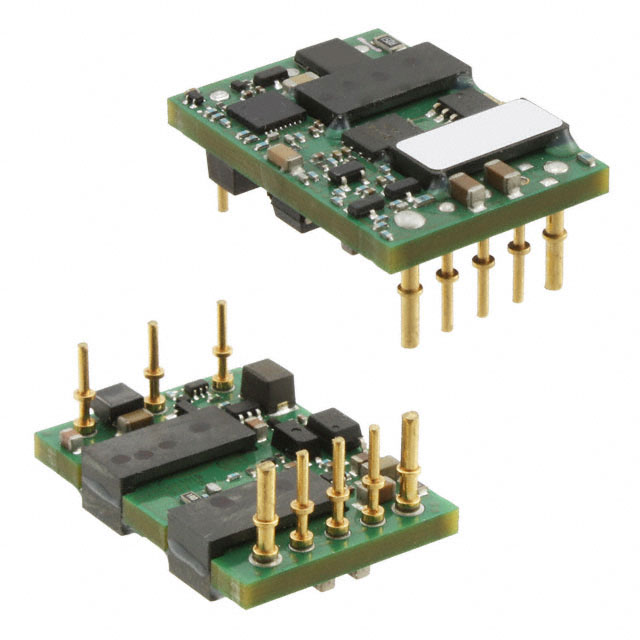

lmages are for reference only.ALD12A48-L
DC DC CONVERTER 5V 60W
Datasheet8-DIP Module, 1/16 Brick
99,071 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 12A 36V - 75V Input
ALD12A48-L
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | ALD25 (60W) |
| Packaging | Tray |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 12A |
| Power (Watts) | 60 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.35" H (33.0mm x 22.9mm x 8.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
|
 |
|
| Part Number | ALD12A48-SL | ALD12A48N-6L | ALD12A48N-L | ALD12A48N-SL |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | ||||
| Description | DC DC CONVERTER 5V 60W | DC DC CONVERTER 5V 60W | DC DC CONVERTER 5V 60W | DC DC CONVERTER 5V 60W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tray |
