High Voltage - Non-Isolated Module DC DC Converter 1 Output 0 ~ -1000V 1mA 11V - 13V Input
AM01HV12VN1KV1MAP
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Technologies |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Voltage - Output 1 | 0 ~ -1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1mA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | 0°C ~ 50°C |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module |
| Size / Dimension | 1.77" L x 0.91" W x 0.59" H (45.0mm x 23.0mm x 15.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

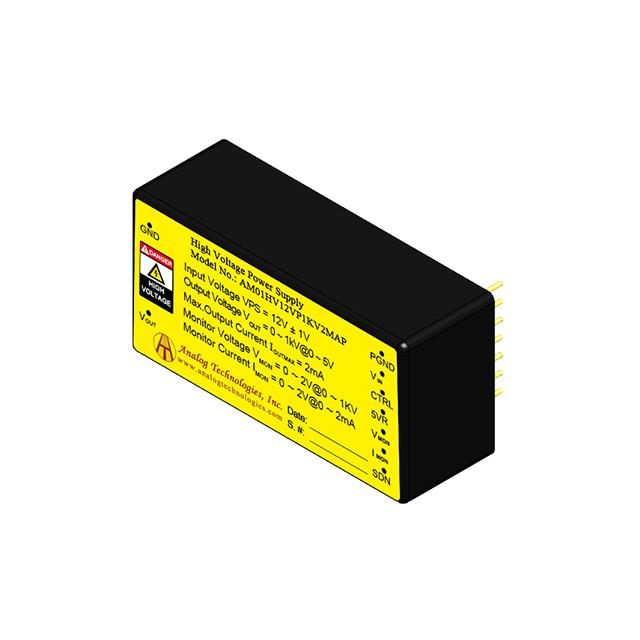

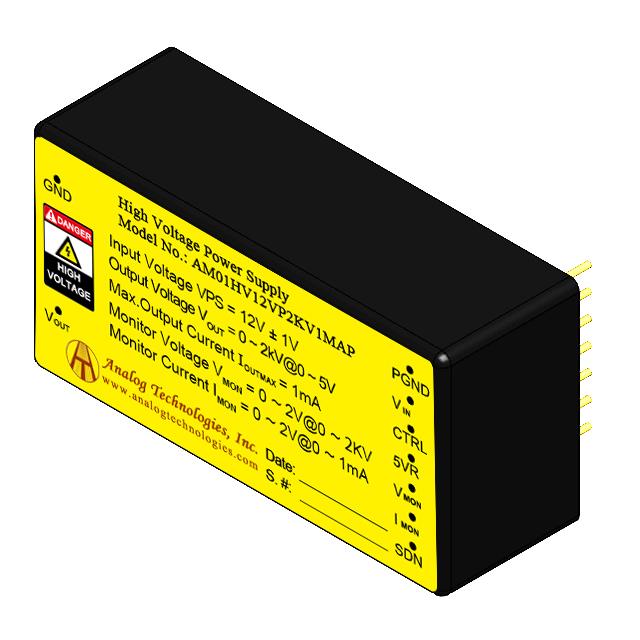

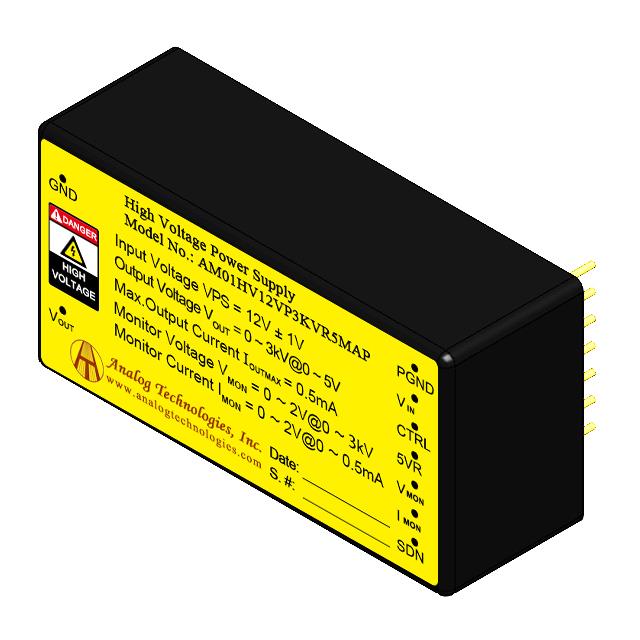

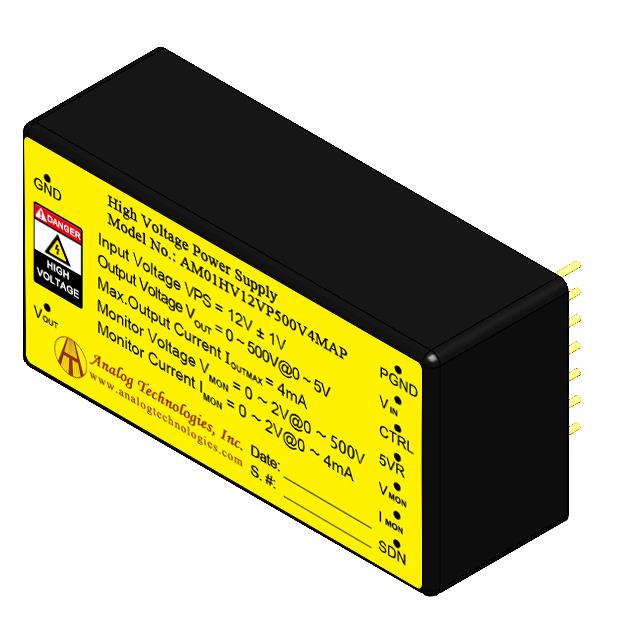

| Part Number | AM01HV12VP1KV2MAP | AM01HV12VP2KV1MAP | AM01HV12VP3KVR5MAP | AM01HV12VP500V4MAP |
| Manufacturer | Analog Technologies | Analog Technologies | Analog Technologies | Analog Technologies |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DIP High Voltage - Non-Isolated | DIP High Voltage - Non-Isolated | DIP High Voltage - Non-Isolated | DIP High Voltage - Non-Isolated |
| Series | Analog Technologies | Analog Technologies | Analog Technologies | Analog Technologies |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
