AOB10B60D
lmages are for reference only.AOB10B60D

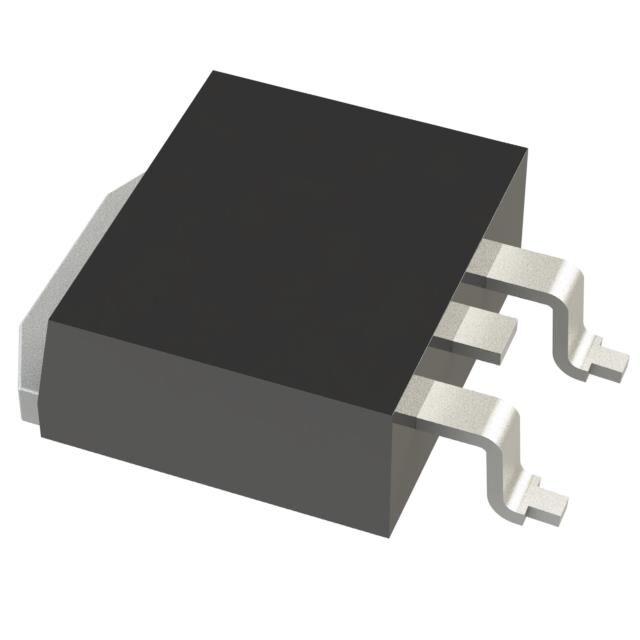

IGBT 600V 20A 163W TO263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
42,810 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 20 A 163 W Surface Mount TO-263 (D2PAK)
AOB10B60D
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | Alpha IGBT™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 40 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 10A |
| Power - Max | 163 W |
| Switching Energy | 260µJ (on), 70µJ (off) |
| Input Type | Standard |
| Gate Charge | 17.4 nC |
| Td (on/off) @ 25°C | 10ns/72ns |
| Test Condition | 400V, 10A, 30Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Reverse Recovery Time (trr) | 105 ns |
| Base Product Number | AOB10 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOB10B65M1 | AOB15B60D | AOB15B65M1 | AOB15B65MQ1 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 650V 10A TO263 | IGBT 600V 30A 167W TO263 | IGBT 650V 30A TO263 | IGBT 15A |
| Series | Alpha IGBT™ | Alpha IGBT™ | Alpha IGBT™ | AlphaIGBT™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
