AOD256

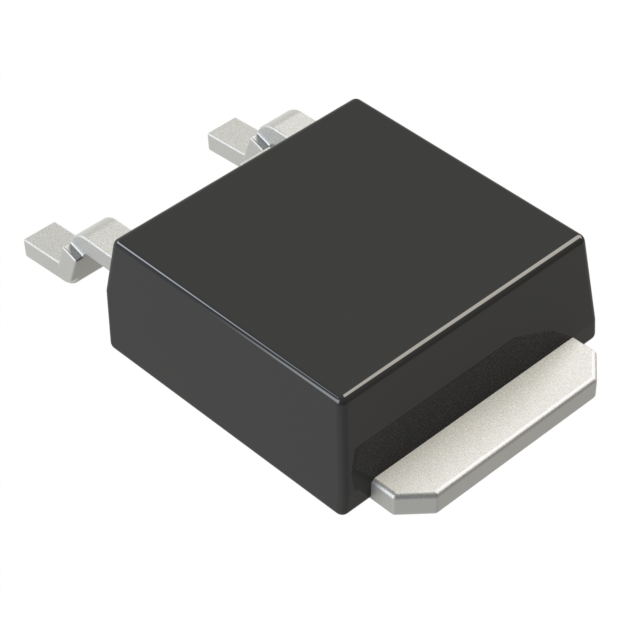

lmages are for reference only.AOD256
MOSFET N-CH 150V 3A/19A TO252
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
52,798 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 150 V 3A (Ta), 19A (Tc) 2.5W (Ta), 83W (Tc) Surface Mount TO-252 (DPAK)
AOD256
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta), 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1165 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 83W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (DPAK) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | AOD25 |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOD254 | AOD2544 | AOD11S60 | AOD1N60 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 150V 4.5A/28A TO252 | MOSFET N-CH 150V 6.5A/23A TO252 | MOSFET N-CH 600V 11A TO252 | MOSFET N-CH 600V 1.3A TO252 |
| Series | - | AlphaMOS | aMOS™ | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
