AOK60B60D1

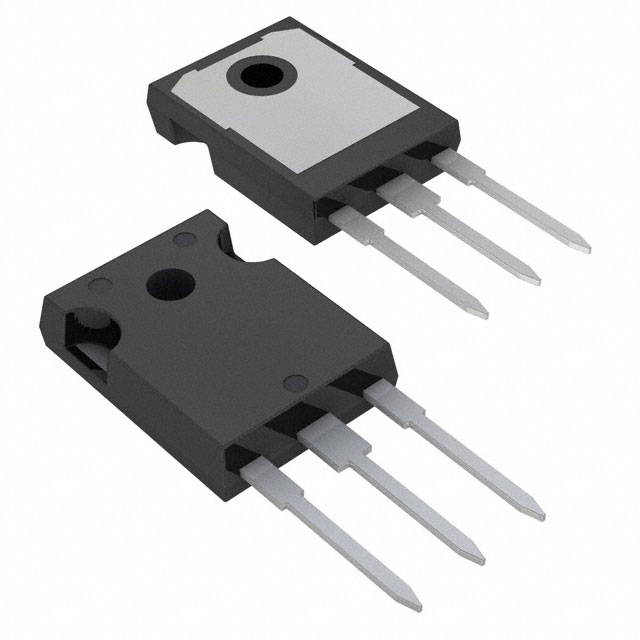

lmages are for reference only.AOK60B60D1
IGBT 600V 120A 417W TO247
DatasheetTO-247-3
58,602 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 120 A 417 W Through Hole TO-247
AOK60B60D1
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | Alpha IGBT™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Pulsed (Icm) | 210 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 60A |
| Power - Max | 417 W |
| Switching Energy | 3.1mJ (on), 730µJ (off) |
| Input Type | Standard |
| Gate Charge | 75 nC |
| Td (on/off) @ 25°C | 32ns/74ns |
| Test Condition | 400V, 60A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | 137 ns |
| Base Product Number | AOK60 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOK60B65H1 | AOK60B65H2AL | AOK60B65HQ3 | AOK60B65M3 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 650V 60A TO-247 | IGBT 60A | IGBT 60A | IGBT 650V 60A TO247 |
| Series | Alpha IGBT™ | AlphaIGBT™ | AlphaIGBT™ | Alpha IGBT™ |
| Packaging | Tube | Tube | Tube | Tube |
