AOM065V120X2

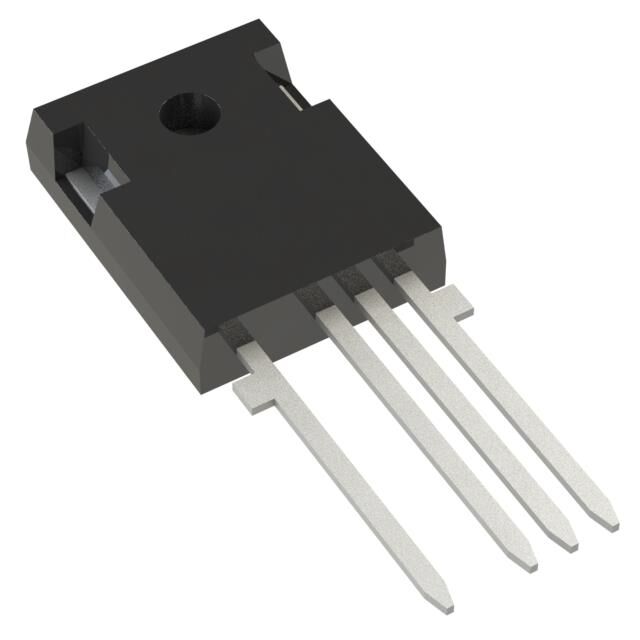

lmages are for reference only.AOM065V120X2
1200V SILICON CARBIDE MOSFET
DatasheetTO-247-4
26,698 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 1200 V 40.3A (Tc) 187.5W (Tj) Through Hole TO-247-4L
AOM065V120X2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 40.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 10A, 15V |
| Vgs(th) (Max) @ Id | 3.5V @ 10mA |
| Vgs (Max) | +18V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1716 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 187.5W (Tj) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4L |
| Package / Case | TO-247-4 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 62.3 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOM065V120X2Q | AO3160 | AO3160E | AO3162 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1200V SILICON CARBIDE MOSFET | MOSFET N-CH 600V 40MA SOT23-3 | MOSFET N-CH 600V 40MA SOT23A-3 | MOSFET N-CH 600V 34MA SOT23 |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
