AONS66402

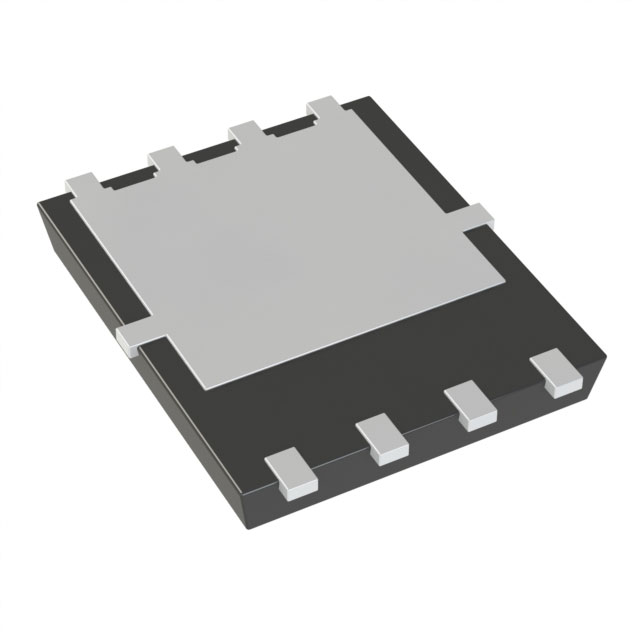

lmages are for reference only.AONS66402
MOSFET N-CH 40V 49A/85A
Datasheet8-PowerSMD, Flat Leads
64,618 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 49A (Ta), 85A (Tc) 6.2W (Ta), 119W (Tc) Surface Mount 8-DFN (5x6)
AONS66402
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | AlphaSGT™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 49A (Ta), 85A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5570 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 6.2W (Ta), 119W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Base Product Number | AONS664 |
| Gate Charge (Qg) (Max) @ Vgs | 105 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | AONS66405 | AONS66405T | AONS66406 | AONS66407 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | N | LINEAR IC | N | N |
| Series | AlphaSGT™ | AlphaSGT™ | AlphaSGT™ | AlphaSGT™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
