AOTF22N50L

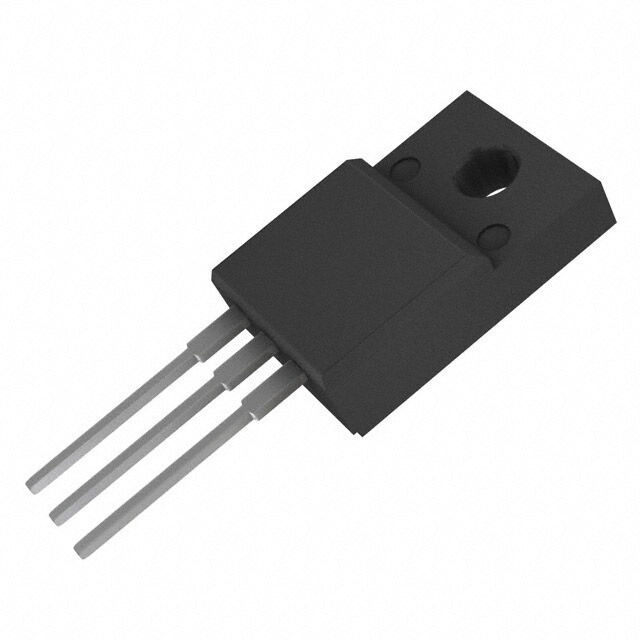

lmages are for reference only.AOTF22N50L
MOSFET N-CH 500V 22A TO220-3F
DatasheetTO-220-3 Full Pack
94,445 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 500 V 22A (Tc) 39W (Tc) Through Hole TO-220F
AOTF22N50L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 260mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3710 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 39W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | AOTF22 |
| Gate Charge (Qg) (Max) @ Vgs | 83 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOTF22N50 | AOTF095A60L | AOTF10N50FD | AOTF10N60 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 500V 22A TO220-3F | MOSFET N-CH 600V 38A TO220F | MOSFET N-CH 500V 10A TO220-3F | MOSFET N-CH 600V 10A TO220-3F |
| Series | - | aMOS5™ | - | - |
| Packaging | Tube | Tube | Tube | Tube |
