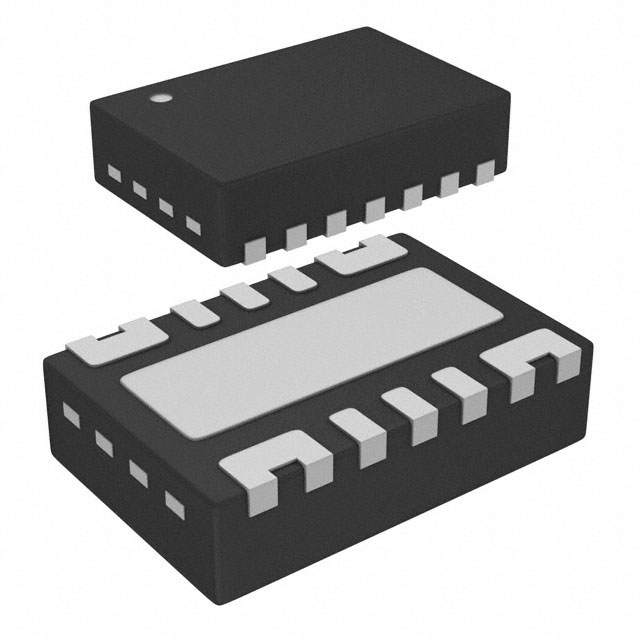

AOZ1331DI
lmages are for reference only.AOZ1331DI
IC PWR SWITCH N-CHAN 1:1 14DFN
Datasheet14-WFDFN Exposed Pad
44,328 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 6A 14-DFN (3x2)
AOZ1331DI
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 20mOhm |
| Input Type | - |
| Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DFN (3x2) |
| Package / Case | 14-WFDFN Exposed Pad |
| Base Product Number | AOZ1331 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

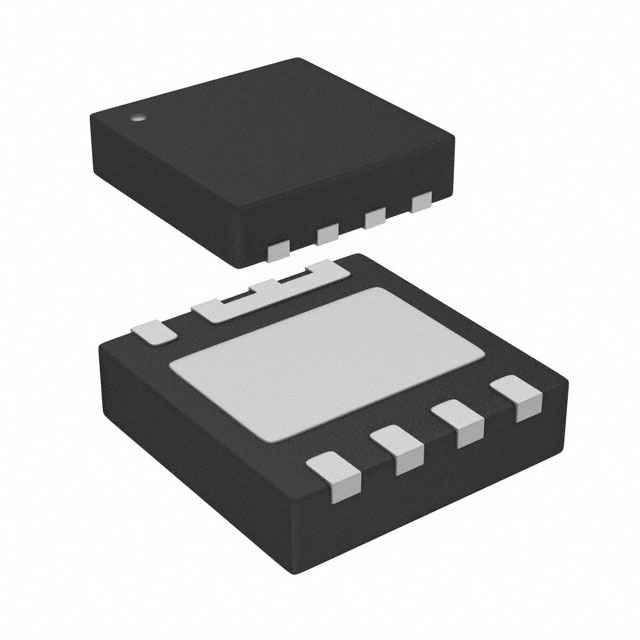

| Part Number | AOZ1331DI_2 | AOZ1331ADI | AOZ1334ADI-01 | AOZ1334ADI-02 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC PWR SWITCH N-CHAN 1:1 14DFN | IC PWR SWITCH N-CHAN 1:1 14DFN | 5.5V/10A SINGLE CHANNEL SMART LO | 5.5V/10A SINGLE CHANNEL SMART LO |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
