AOZ1374DI-01
lmages are for reference only.AOZ1374DI-01
20V USB SWITCH OCP AND RCB DFN
Datasheet10-VFDFN Exposed Pad
49,309 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 3.5A 10-DFN (3x3)
AOZ1374DI-01
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | ECPower™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 3.4V ~ 23V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Rds On (Typ) | 36mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart, Latch Function |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-DFN (3x3) |
| Package / Case | 10-VFDFN Exposed Pad |
| Base Product Number | AOZ1374 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

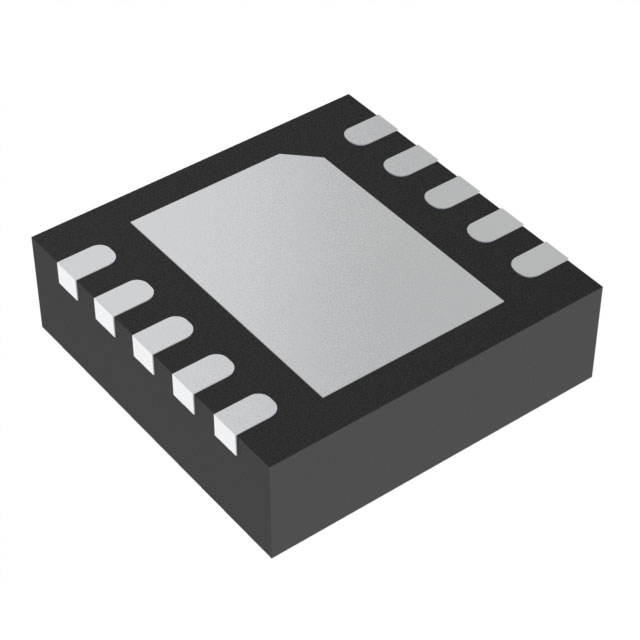

| Part Number | AOZ1374DI | AOZ1374DI-02 | AOZ1373DI-01 | AOZ1373DI-02 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH P-CH 10DFN | 20V USB SWITCH OCP AND RCB DFN | ECPOWER 20V 39M PROTECTION SWITC | ECPOWER 20V 39M PROTECTION SWITC |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
