AOZ8231ADI-08

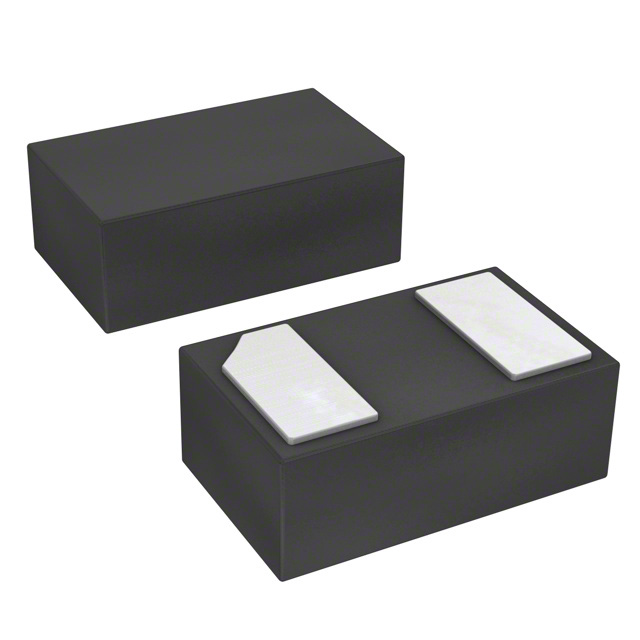

lmages are for reference only.AOZ8231ADI-08
TVS DIODE 8VWM 22.5VC 2DFN
Datasheet2-UDFN
98,050 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22.5V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
AOZ8231ADI-08
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 8V (Max) |
| Voltage - Breakdown (Min) | 9.5V |
| Voltage - Clamping (Max) @ Ipp | 22.5V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 23pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 2-UDFN |
| Supplier Device Package | 2-DFN (1x0.6) |
| Base Product Number | AOZ8231 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOZ8231ADI-02 | AOZ8231ADI-03 | AOZ8231ADI-05 | AOZ8231ADI-12 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 2.5VWM 12.5VC 2DFN | TVS DIODE 3.3VWM 13.5VC 2DFN | TVS DIODE 5VWM 15.5VC 2DFN | TVS DIODE 12VWM 26VC 2DFN |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
