AOZ8336DI-03

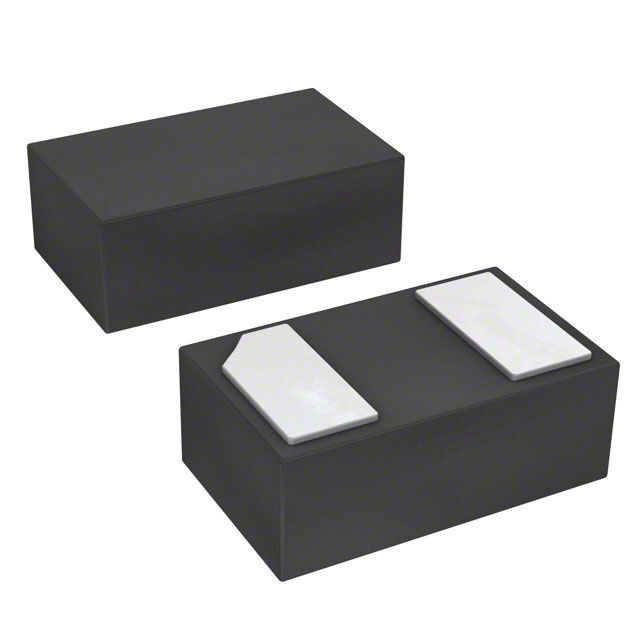

lmages are for reference only.AOZ8336DI-03
1-CHANNEL BIDIRECTIONAL HIGH-SUR
Datasheet2-UDFN
96,593 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.9V Clamp 50A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
AOZ8336DI-03
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.6V |
| Voltage - Clamping (Max) @ Ipp | 9.9V |
| Current - Peak Pulse (10/1000µs) | 50A (8/20µs) |
| Power - Peak Pulse | 80W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 100pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 2-UDFN |
| Supplier Device Package | 2-DFN (1x0.6) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOZ8331DI-04 | AOZ8000CI | AOZ8000CIL | AOZ8000CIL_3 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 1-CHANNEL BIDIRECTIONAL HIGH-SUR | TVS DIODE 5VWM 15VC SOT23-6 | TVS DIODE 5VWM 15VC SOT23-6 | TVS DIODE 5.5VWM 15VC SOT23-6 |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Box (TB) |
