AOZ8S305BLS-04
lmages are for reference only.AOZ8S305BLS-04
1CH 5.0V BIDIRECTIONAL 0.15PF TV
Datasheet0201 (0603 Metric)
36,811 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.3V (Typ) Clamp 20A (8/20µs) Ipp Tvs Diode Surface Mount 2-WLCSP (0.6x0.3)
AOZ8S305BLS-04
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 4V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 5.3V (Typ) |
| Current - Peak Pulse (10/1000µs) | 20A (8/20µs) |
| Power - Peak Pulse | 140W |
| Power Line Protection | No |
| Applications | HDMI, USB |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 2-WLCSP (0.6x0.3) |
| Base Product Number | AOZ8S305 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

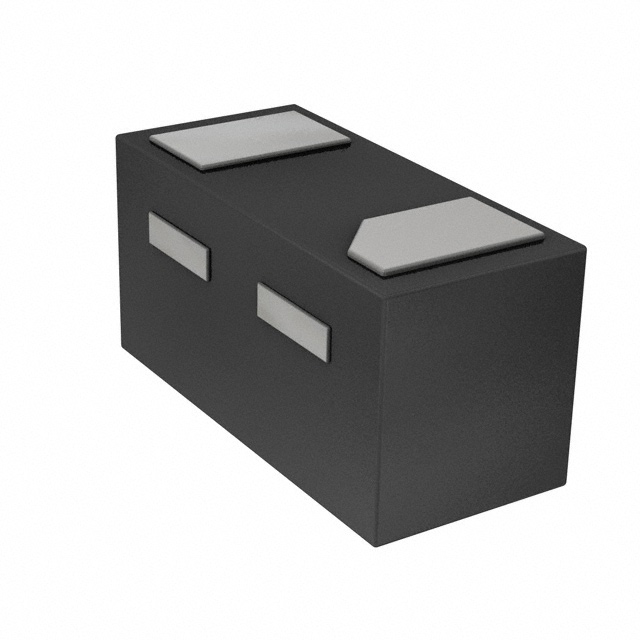

| Part Number | AOZ8S305BLS-05 | AOZ8S305BLS-12 | AOZ8S305BLS-24 | AOZ8000CI |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 1 CHANNEL BIDIRECTIONAL TVS DIOD | 1 CHANNEL BIDIRECTIONAL ULTRA LO | 1 CH 24V BIDIRECTIONAL 0.5PF TVS | TVS DIODE 5VWM 15VC SOT23-6 |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
