AP2132MP-2.5TRG1

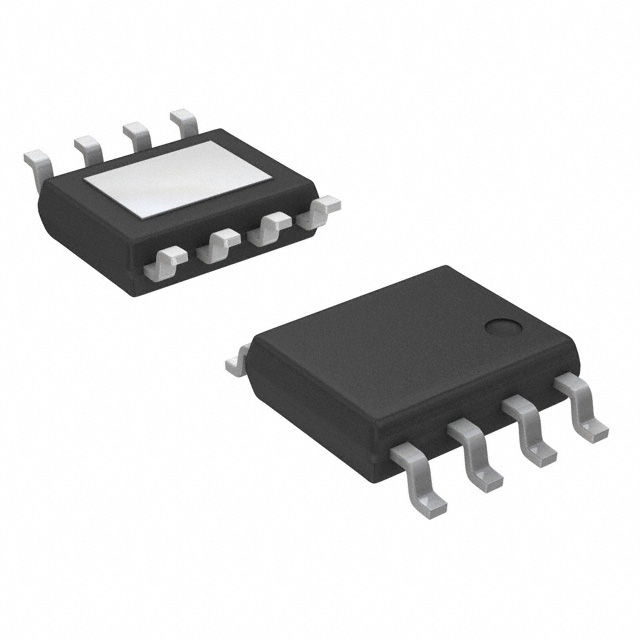

lmages are for reference only.AP2132MP-2.5TRG1
IC REG LINEAR POS ADJ 2A 8SO
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
61,429 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 2A 8-SO-EP
AP2132MP-2.5TRG1
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V (2.5V) |
| Voltage - Output (Max) | 3V |
| Voltage Dropout (Max) | 0.45V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 300 µA |
| PSRR | 60dB (100Hz ~ 1kHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SO-EP |
| Base Product Number | AP2132 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AP2132AMP-1.8TRG1 | AP2132BMP-1.2TRG1 | AP2132BMP-1.5TRG1 | AP2132BMP-2.5TRG1 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN POS ADJ 3A 8PSOP | IC REG LINEAR POS ADJ 2A 8SO | IC REG LIN POS ADJ 2A 8PSOP | IC REG LINEAR POS ADJ 2A 8SO |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
