AP3615FNTR-G1Alternate Purchasing Options
lmages are for reference only.AP3615FNTR-G1Alternate Purchasing Options
IC LED DRV RGLTR MULT-STEP 16QFN
Datasheet16-VFQFN Exposed Pad
76,825 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 5 Output DC DC Regulator Switched Capacitor (Charge Pump) Multi-Step Dimming 20mA 16-QFN (3x3)
AP3615FNTR-G1Alternate Purchasing Options
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes |
| Number of Outputs | 5 |
| Voltage - Supply (Min) | 2.8V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 20mA |
| Frequency | 1MHz |
| Dimming | Multi-Step |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | AP3615 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

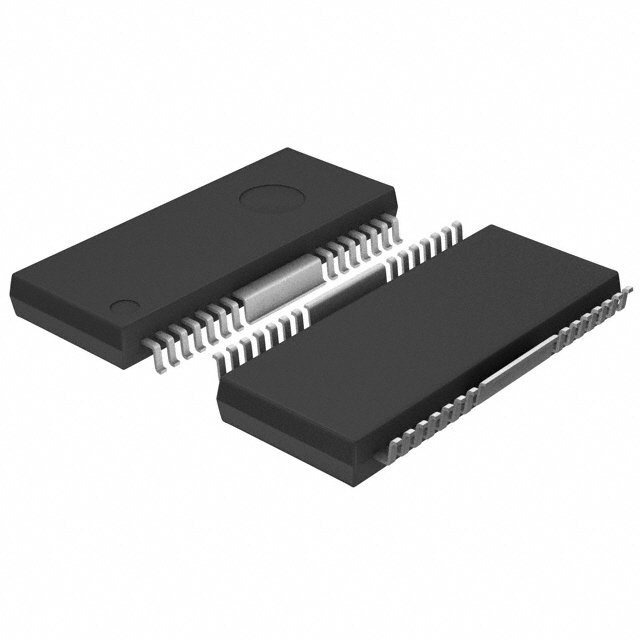

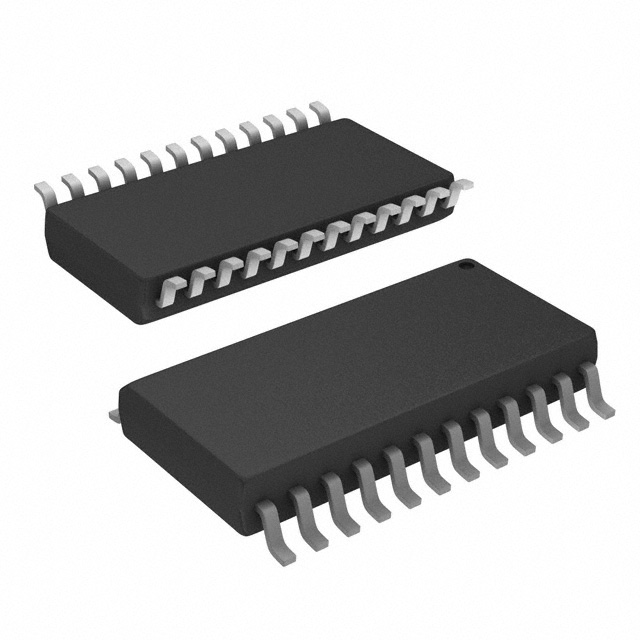

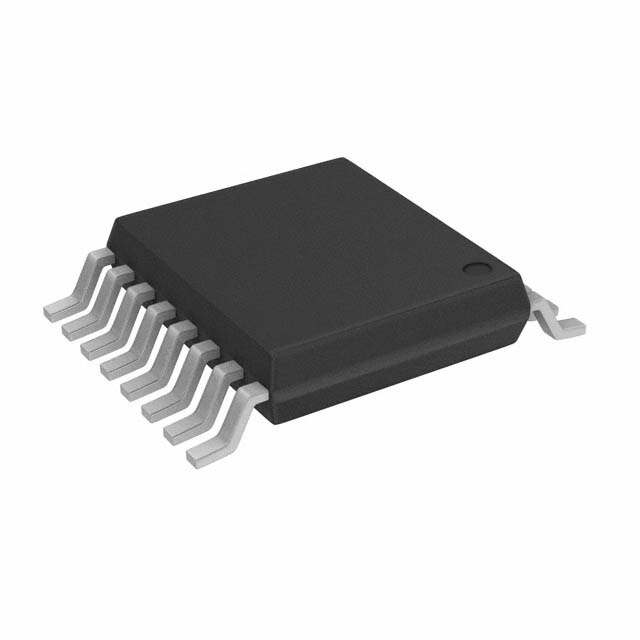

| Part Number | AP3612M28TR-G1 | AP3612MTR-G1 | AP3616M28-G1 | PCA9922PW,118 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRVR CTRL PWM 75MA 28HSOP | IC LED DRVR CTRL PWM 75MA 24SOIC | IC LED DRVR LIN PWM 75MA 28HSOP | IC LED DRVR LIN PWM 60MA 16TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
