AP725 75R F
lmages are for reference only.Payment Methods
Delivery Services
75 Ohms ±1% 20W Chip Resistor TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Thick Film
AP725 75R F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | ARCOL |
| Series | ARCOL, AP725 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Resistance | 75 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 20W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 |
| Ratings | - |
| Size / Dimension | 0.398" L x 0.177" W (10.10mm x 4.50mm) |
| Height - Seated (Max) | 0.192" (4.88mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

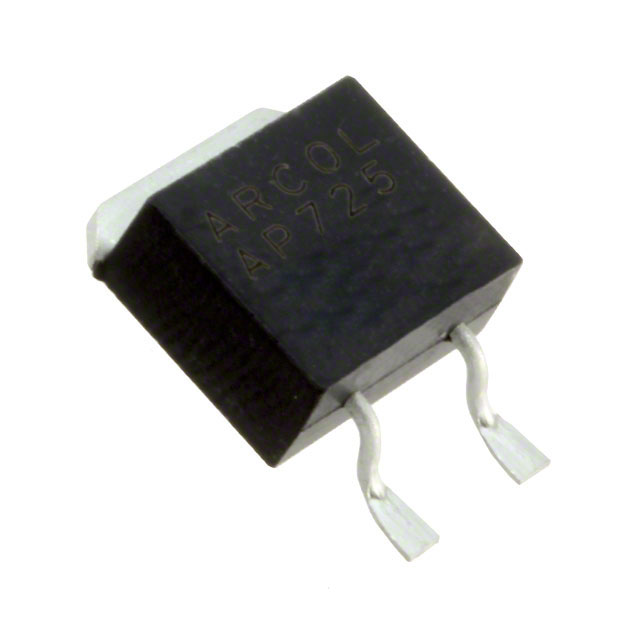

| Part Number | AP725 75R F | AP725 100R F | AP725 100R F | AP725 10R F |
| Manufacturer | Ohmite | Ohmite | ARCOL | Ohmite |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | 20 WATTS TO-263NN 75 OHMS 1% | RES SMD 100 OHM 1% 20W TO263 | RES 100 OHM 1% 20W D2PAK | RES SMD 10 OHM 1% 20W TO263 |
| Series | Ohmite | Ohmite | ARCOL | |
| Packaging | Box | Tray | Bulk |
