AP725 R1 F
lmages are for reference only.Payment Methods
Delivery Services

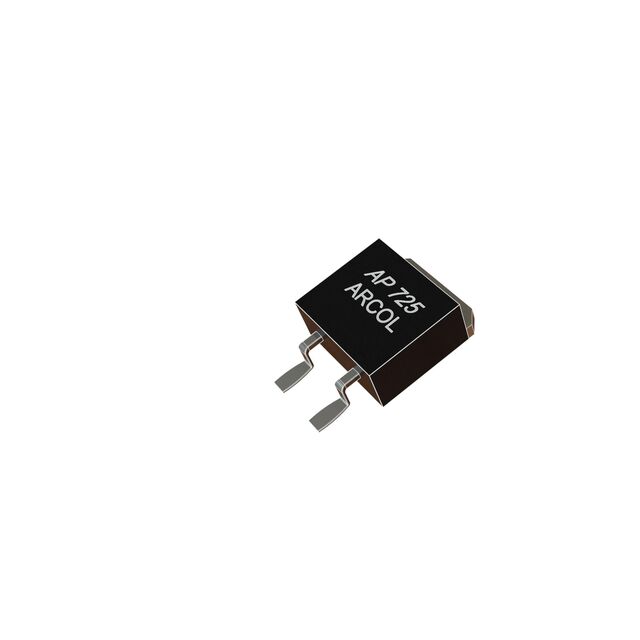

100 mOhms ±1% 20W Chip Resistor TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Thick Film
AP725 R1 F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | ARCOL |
| Series | ARCOL, AP725 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Resistance | 100 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 20W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 |
| Ratings | - |
| Size / Dimension | 0.398" L x 0.177" W (10.10mm x 4.50mm) |
| Height - Seated (Max) | 0.192" (4.88mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|
| Part Number | AP725 R1 F | AP725 R5 F | AP725 100R F | AP725 100R F |
| Manufacturer | Ohmite | Ohmite | Ohmite | ARCOL |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 20 WATTS TO-263NN 100 MILLIOHMS | 20 WATTS TO-263NN 500 MILLIOHMS | RES SMD 100 OHM 1% 20W TO263 | RES 100 OHM 1% 20W D2PAK |
| Series | Ohmite | Ohmite | ARCOL | |
| Packaging | Box | Tray | Bulk |
