AP7340D-11FS4-7

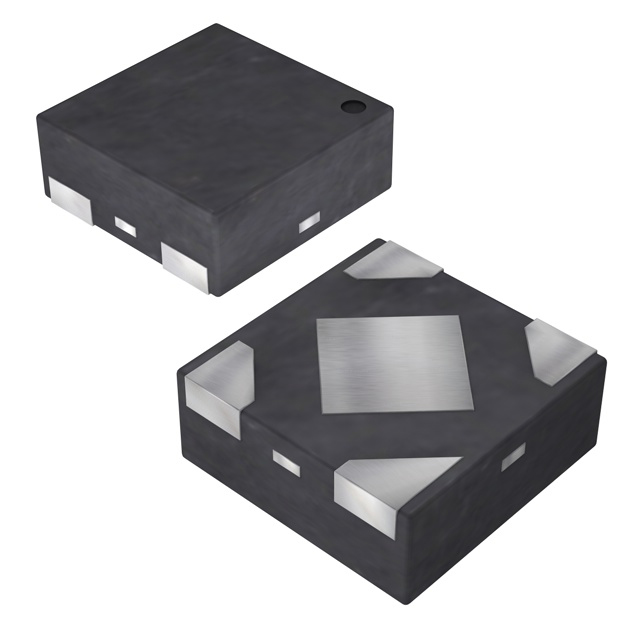

lmages are for reference only.AP7340D-11FS4-7
IC REG LINEAR 1.1V 150MA 4DFN
Datasheet4-XDFN Exposed Pad
76,477 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA X2-DFN1010-4
AP7340D-11FS4-7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 1.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.62V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | X2-DFN1010-4 |
| Base Product Number | AP7340 |
| Current - Supply (Max) | 100 µA |
| Product Attribute |  |
 |
 |
 |
| Part Number | AP7340D-12FS4-7 | AP7340D-15FS4-7 | AP7340D-185FS4-7 | AP7340D-18FS4-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.2V 150MA 4DFN | IC REG LINEAR 1.5V 150MA 4DFN | IC REG LINEAR 1.85V 150MA 4DFN | IC REG LINEAR 1.8V 150MA 4DFN |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
