AP7361C-15SPR-13
lmages are for reference only.AP7361C-15SPR-13
IC REG LINEAR 1.5V 1A 8SO
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
51,737 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A 8-SO-EP
AP7361C-15SPR-13
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.57V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 75dB ~ 55dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SO-EP |
| Base Product Number | AP7361 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AP7361C-15D-13 | AP7361C-15DR-13 | AP7361C-15E-13 | AP7361C-15ER-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

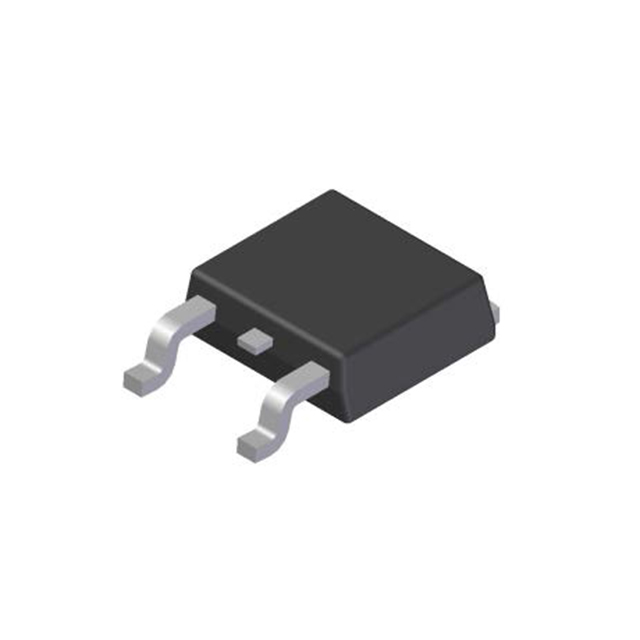

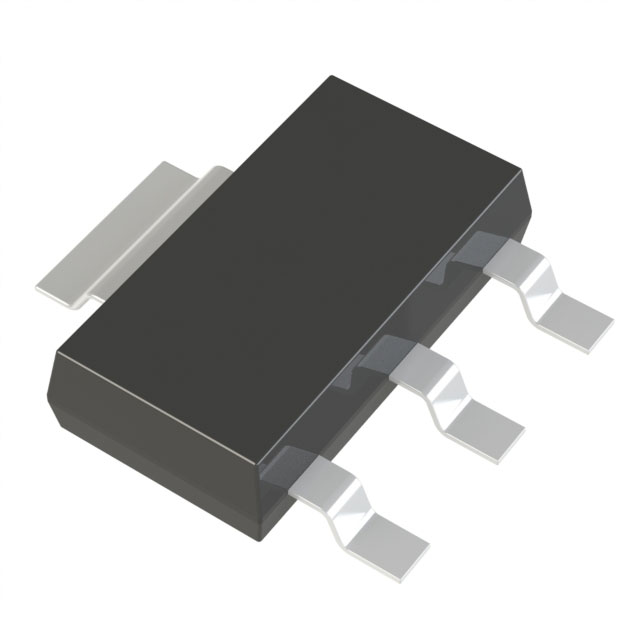

| Description | IC REG LINEAR 1.5V 1A TO252 | IC REG LINEAR 1.5V 1A TO252 | IC REG LINEAR 1.5V 1A SOT223 | IC REG LINEAR 1.5V 1A SOT223R |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
