APPM00050524102XYE
lmages are for reference only.APPM00050524102XYE
CMC 2.1A 2LN 1K OHM SMD AEC-Q200
DatasheetHorizontal, 4 PC Pad
58,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 1 kOhms @ 100 MHz 2.1A DCR 68mOhm
APPM00050524102XYE
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Pulse Electronics |
| Series | APPM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 2.1A |
| DC Resistance (DCR) (Max) | 68mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) |
| Height (Max) | 0.094" (2.40mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

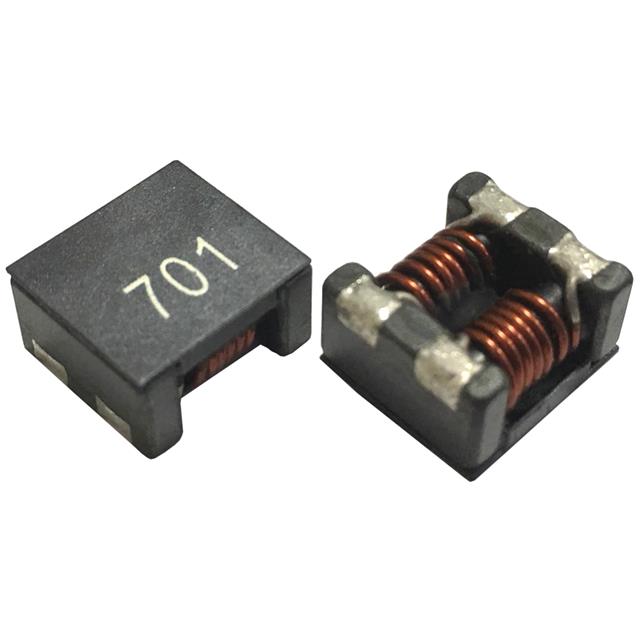

| Part Number | APPM00050524122XYE | APPM00050524142XYE | APPM00050524301XYE | APPM00050524401XYE |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 2A 2LN 1.2K OHM SMD AEC-Q200 | CMC 1.9A 2LN 1.4KOHM SMD AECQ200 | CMC 3A 2LN 300 OHM SMD AEC-Q200 | CMC 2.5A 2LN 400OHM SMD AEC-Q200 |
| Series | APPM | APPM | APPM | APPM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
