APT100GN120B2G
lmages are for reference only.APT100GN120B2G
IGBT TRENCH FIELD STP 1200V 245A
DatasheetTO-247-3 Variant
42,709 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT Trench Field Stop 1200 V 245 A 960 W Through Hole
APT100GN120B2G
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 245 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 100A |
| Power - Max | 960 W |
| Switching Energy | 11mJ (on), 9.5mJ (off) |
| Input Type | Standard |
| Gate Charge | 540 nC |
| Td (on/off) @ 25°C | 50ns/615ns |
| Test Condition | 800V, 100A, 1Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | - |
| Reverse Recovery Time (trr) | - |
| Base Product Number | APT100 |
| Product Attribute |  |
 |
 |
 |

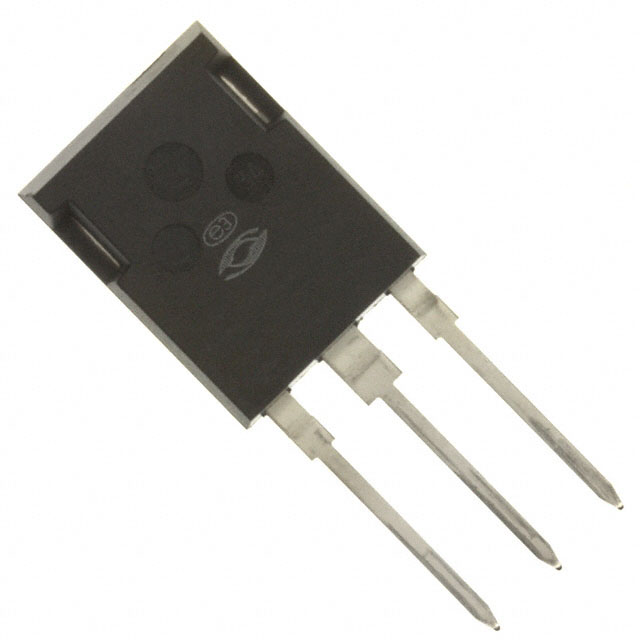

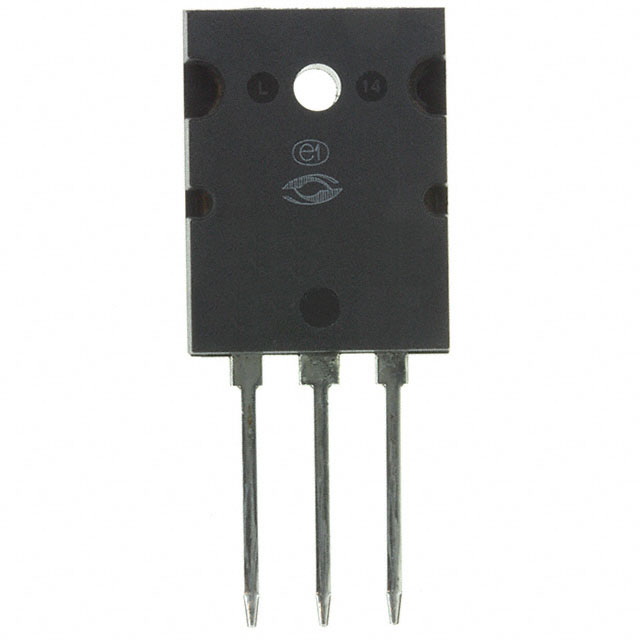

| Part Number | APT100GN60B2G | APT100GN60LDQ4G | APT100GT60B2RG | APT102GA60B2 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IGBT TRENCH FIELD STOP 600V 229A | IGBT TRENCH FS 600V 229A TO264 | IGBT NPT 600V 148A | IGBT 600V 183A 780W TO247 |
| Series | - | - | Thunderbolt IGBT® | POWER MOS 8™ |
| Packaging | Tube | Tube | Tube | Tube |
